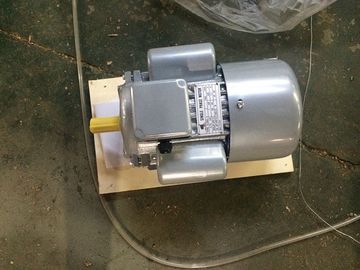

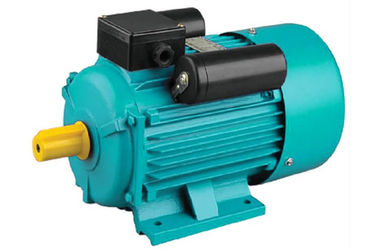

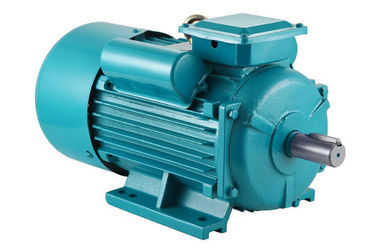

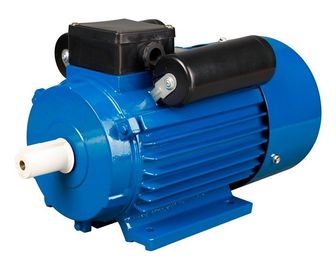

High Speed Single Phase AC Asynchronous Motor For Driving Air Compressor

  • High Speed Single Phase AC Asynchronous Motor For Driving Air Compressor
  • High Speed Single Phase AC Asynchronous Motor For Driving Air Compressor
  • High Speed Single Phase AC Asynchronous Motor For Driving Air Compressor
  • High Speed Single Phase AC Asynchronous Motor For Driving Air Compressor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC80C-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Driving Air Compressor
Output 0.75HP /0.55KW Pole 4
Protection Class IP54 Frequency 50Hz
Insulation Class F
Highlight

single phase capacitor start motor

,

single phase asynchronous motor
Leave a Message
Product Description

High-Speed Single Phase AC Asynchronous Motor For Driving Air Compressor



Single Phase Induction Motor APPLICATIONS:


YC series single-phase asynchronous motor is commonly known as a capacitor start motor. Single-phase motor stator winding has a primary and secondary winding, a phase difference of 90 degrees in space. We know that the single-phase motor is the main winding of the magnetic field is generated pulsating magnetic field, through the secondary winding and capacitor split phase, to produce a fixed rotation direction of the magnetic field, when the speed exceeds the the70-80% role, the centrifugal switch will cut off the secondary winding and the start capacitor, the capacitor starts motor is characterized by large starting torque, starting torque is greater than 1.8, low power factor used to start demanding situations, cast iron shell motor.


DATA:


Model No.: YC80C-4
Phase: Single Phase
Type: Induction Motor
Output power: 0.55kw/0.75HP
Voltage: 220V
Frequency: 50 Hz
Protect feature: Totally enclosed fan-cooled
Protection class: IP44
Duty: Continuous (S1)
Insulation Class: F
Housing: Cast-Iron Housing
Certification: CE; ISO 9001

MOTOR ADVANTAGES:

1.Vacuum varnish impregnation for superior tropic proof insulation

2.Continuous S1 operation

3.Industrial type service factors

4.Heavy duty ball bearings

5. Reasonable price with high quality and kind service.
6. Used for machinery without special requirements.
7. Longer working life, easy construction, convenient installation, and repairmen





Technical data at 50 Hz

Model Power Voltage
(V)		 Current
(A)		 Speed
(r.p.m)		 Eff
(%)		 Power
factor		 Starting Torque
Rated torque		 Starting Current
rated current		 Max torque
Rated torque
KW HP
YC80A-2 0.37 1/2 220 3.7 2880 62 0.73 2.8 6.5 1.8
YC80B-2 0.55 3/4 220 5.3 2880 65 0.73 2.8 6.5 1.8
YC80C-2 0.75 1 220 6.7 2880 68 0.75 2.4 6.5 1.8
YC90S-2 1.1 1.5 220 7.2 2880 73.2 0.95 2.8 6 1.8
YC90L-2 1.5 2 220 8.9 2900 79.32 0.97 2.8 7 1.8
YC100L-2 2.2 3 220 13.2 2900 78.8 0.96 3 6.5 1.8
YC80A-4 0.25 1/3 220 3.4 1450 56 0.6 2.8 6 1.8
YC80B-4 0.37 1/2 220 4.5 1450 60 0.62 2.8 6 1.8
YC80C-4 0.55 3/4 220 6 1450 64 0.65 2.8 6 1.8
YC90S-4 0.75 1 220 5.5 1450 73.3 0.93 2.8 6.5 1.8
YC90L-4 1.1 1.5 220 7.8 1450 71 0.9 2.5 6 1.8
YC100L-4 1.5 2 220 9.3 1450 72 0.92 2.8 7 1.8
YC112M-4 2.2 3 220 13.5 1450 72 0.95 2.4 6.5 1.8
YC132SA-4 3 4 220 25.2 1450 74 0.73 2.4 6.5 1.8
YC132SB-4 4 5 220 30 1450 75 0.74 2.4 6.5 1.8




High Speed Single Phase AC Asynchronous Motor For Driving Air Compressor 0


Single Phase Induction Motor GUARANTEE:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

Good factory Supplier save you time and money, help your win market,

contact us: sales @zz-pump.com
Color & Brand OEM welcomed. HS NO. reference:85015200 00
MOQ
(small Qty accept)		 5-50-500-1000-5000-10000-50000 pcs depend on different sizes, items, and categories. MIN and SMALL quantity accept
Price
(Factory Lowest price)		 we are factory, ensure lowest price and good quality and best service for you, we best service 24 hours online.
Production time General 25-30 days, the biggest order depends on a quantity
Package details Inside foam packing, outside carton packing (the frame size smaller than 112)
Plywood case packing (the frame size bigger than 112)
LCL with pallet packing
Usage Machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, and food processing machines, etc
Warm tips More products details, our Advantage, package ways, lowest price, etc. pls check next details and contact us (P:0086-13706040131)
