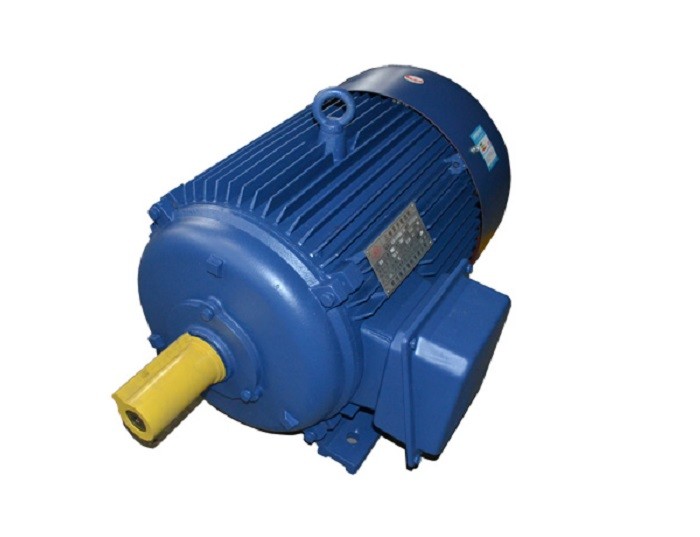

3 Phase Electric High Efficiency IE3 Motor , 2 Pole Asynchronous Cooling Fan

  • 3 Phase Electric High Efficiency IE3 Motor , 2 Pole Asynchronous Cooling Fan
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YE3-63M1-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Efficiency IE 3 Body Cast Iron
Output 0.18KW Pole 2
Protection Class IP44/54 Frequency 50Hz/60Hz
Insulation Class B/F/H Product Name IE3 Motor
Highlight

ie3 electric motors

,

3 phase electric motor
Leave a Message
Product Description

3 Phase Motors YE3 Series 2 Pole Super High-Performance Asynchronous Motor Cooling Fan



IE3 MotorTHREE-PHASE MOTOR:


1. novel design, good-looking, maintained easily
2. use class F insulation, safe and reliable
3. self-cooled squirrel-cage motor of the enclosed type
4. Use superior seton molding process
5. wide usage, be suitable for many kinds of machines



IE3 Motor INSULATION MATERIAL:

1. Use 3940 Magnetic slot wedge, heated and extruded by epoxy resin and fiberglass.
2. Use DMD high-temperature insulating paper, combined with mylar limpness composite material and polyester non-woven fabrics thin film.
3. Use a High temperature resistant 180℃ Cable line.
4. Use Oxyhydrogen carbon-free welding technology. Dense flame, strong welding, and carbon embrittlement-free.





OPERATING LIMITS:



Ambient Temperature: -15°C~40°C

Altitude: not exceed 1000 Meter

Rated Voltage: 380V or any voltage between 220-1140V

Rated Frequency: 50Hz/60Hz

Protection Class: IP44, IP54, IP55

Insulation Class: B/F

Cooling Method: IC0141

Working Duty: S1(Continuous)

Humidity: Lower than 90%

Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above







Products Details:



Site conditions Motors are suitable for the most working environment at a temperature from -15°C t0 +40°C and an altitude below 1000 meters.
Insulation The motors' insulation system is set to Class F(105K), examined by Class B(80K), which ensures the life span and reliability of the motors.
Motor protection Motors can be installed with PTC, PT100 used winding and bearing temperature measurement on request.
Voltage and frequency The standard voltage and frequency is 380V 50HZ and can be set to any single voltage in the range of 200-660V at a frequency of 50 or 60HZ. The motors work well within variations of ±5% from the rated voltage.
Vibration Motors are designed for vibration class A; vibration class B is available on request.
Duty Continuous(S1)
Cooling and ventilation The standard cooling method is enclosed fan cooled(TEFC) by IC411 of IEC60034-6. Standard motors are equipped with auxiliary plastic fans.
Winding 100% Copper Wire
Protection class The standard protection class is IP54/IP55, which can be used in humid and dusty environments. Higher degrees of protection are available.
Quality assurance From the first line of production designing till the finishing procedure, obey ISO9001 documented quality system.



PERFORMANCE CHART:



Model Power
(KW) 		Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Rated
Torque		 Test/Tn Ist/In Tmax Tmax/Tn
380V 5OHz Synchronous Speed 3000r/min (2 Poles)
YE3-63M1-2 0.18 0.53 2720 63.9 0.8 0.63 2.2 5.5 2.2 61
YE3-63M2-2 0.25 0.7 2720 67.1 0.81 0.88 2.2 5.5 2.2 61
YE3-71M1-2 0.37 1 2740 69 0.81 1.29 2.2 6.1 2.2 62
YE3-71M2-2 0.55 1.4 2740 72.3 0.82 1.92 2.2 6.1 2.2 62
YE3-801-2 0.75 1.8 2830 80.7 0.83 2.5 2.2 7.0 2.3 62
YE3-802-2 1.1 2.5 2840 82.7 0.83 3.65 2.2 7.3 2.3 62
YE3-90S-2 1.5 3.4 2840 84.2 0.84 4.97 2.2 7.6 2.3 67
YE3-90L-2 2.2 4.8 2840 85.9 0.85 7.3 2.2 7.6 2.3 67
YE3-100L-2 3 6.3 2870 87.1 0.87 9.95 2.2 7.8 2.3 74
YE3-112M-2 4 8.2 2890 88.1 0.88 13.1 2.2 8.3 2.3 77
YE3-132S1-2 5.5 11.1 2900 89.2 0.88 17.9 2 8.3 2.3 79
YE3-132S2-2 7.5 15 2900 90.1 0.89 24.4 2 7.9 2.3 79
YE3-160M1-2 11 21.3 2930 91.2 0.89 35.6 2 8.1 2.3 81
YE3-160M2-2 15 28.7 2930 91.9 0.89 48.6 2 8.1 2.3 81
YE3-160L-2 18.5 34.7 2930 92.4 0.89 60 2 8.2 2.3 81
YE3-180M-2 22 41.2 2940 92.7 0.89 71.2 2 8.2 2.3 83
YE3-200L1-2 30 55.3 2950 93.3 0.89 96.6 2 7.6 2.3 84
YE3-200L2-2 37 67.9 2950 93.7 0.89 119 2 7.6 2.3 84
YE3-225M-2 45 82.1 2970 94 0.89 145 2 7.7 2.3 86
YE3-250M-2 55 100.1 2970 94.3 0.89 177 2 7.7 2.3 89
YE3-280S-2 75 134 2970 94.7 0.89 241 1.8 7.1 2.3 91
YE3-280M-2 90 160.2 2970 95 0.89 289 1.8 7.1 2.3 91
380V 5OHz Synchronous Speed 1500r/min (4 Poles)
YE3-63M1-4 0.12 0.45 1310 55.8 0.72 0.87 2.1 4.4 2.2 52
YE3-63M2-4 0.18 0.64 1310 58.6 0.73 1.31 2.1 4.4 2.2 52
YE3-71M1-4 0.25 0.81 1330 63.6 0.74 1.8 2.1 5.2 2.2 55
YE3-71M2-4 0.37 1.1 1330 65.3 0.75 2.66 2.1 5.2 2.2 55
YE3-801-4 0.55 1.4 1390 80.6 0.75 3.67 2.3 6.5 2.3 56
YE3-802-4 0.75 1.9 1390 82.5 0.75 5.01 2.3 6.6 2.3 56
YE3-90S-4 1.1 2.7 1400 84.1 0.76 7.35 2.3 6.8 2.3 59
YE3-90L-4 1.5 3.6 1400 85.3 0.77 10 2.3 7.0 2.3 59
YE3-100L1-4 2.2 4.8 1430 86.7 0.81 14.6 2.3 7.6 2.3 64
YE3-100L2-4 3 6.6 1430 87.7 0.82 19.9 2.3 7.6 2.3 64
YE3-112M-4 4 8.6 1440 88.6 0.82 26.3 2.2 7.8 2.3 65
YE3-132S-4 5.5 11.6 1440 89.6 0.83 35.9 2 7.9 2.3 71
YE3-132M-4 7.5 14.6 1440 90.4 0.84 48.9 2 7.5 2.3 71
YE3-160M-4 11 22.6 1460 91.4 0.85 71.5 2 7.7 2.3 73
YE3-160L-4 15 29.3 1460 92.1 0.86 97.4 2 7.8 2.3 73
YE3-180M-4 18.5 35.45 1470 92.6 0.86 120 2 7.8 2.3 76
YE3-180L-4 22 42.35 1470 93 0.86 143 2 7.8 2.3 76
YE3-200L-4 30 57.6 1475 93.6 0.86 194 2 7.3 2.3 76
YE3-225S-4 37 69.8 1480 93.9 0.86 239 2 7.4 2.3 78
YE3-225M-4 45 84.5 1480 94.2 0.86 290 2 7.4 2.3 78
YE3-250M-4 55 103.1 1485 94.6 0.86 354 2 7.4 2.3 79
YE3-280S-4 75 139.7 1490 95 0.88 481 2 6.7 2.3 80
YE3-280M-4 90 166.9 1485 92.5 0.88 577 2 6.9 2.3 80
380V 5OHz Synchronous Speed 1000r/min (6 Poles)
YE3-71M1-6 0.18 0.76 850 54.6 0.66 2.02 1.9 4.0 2.0 52
YE3-71M2-6 0.25 0.97 850 57.4 0.68 2.81 1.9 4.0 2.0 52
YE3-80M1-6 0.37 1.2 890 68 0.7 3.88 1.9 5.5 2.1 54
YE3-80M2-6 0.55 1.7 890 78 0.71 5.67 1.9 5.8 2.1 54
YE3-90S-6 0.75 2.2 910 78.9 0.71 7.58 2 6.0 2.1 57
YE3-90L-6 1.1 3.8 910 81 0.73 11.1 2 6.0 2.1 57
YE3-100L-6 1.5 3.8 940 82.5 0.73 15.1 2 6.5 2.1 61
YE3-112M-6 2.2 5.4 940 84.3 0.74 21.8 2 6.6 2.1 65
YE3-132S-6 3 7.4 960 85.6 0.74 29.4 1.9 6.8 2.1 69
YE3-132M1-6 4 9.6 960 86.8 0.74 39.2 1.9 6.8 2.1 69
YE3-132M2-6 5.5 12.9 960 88 0.75 53.9 2 7.0 2.1 69
YE3-160M-6 7.5 17 970 89.1 0.79 73.1 2.1 7.0 2.1 70
YE3-160L-6 11 24.2 970 90.3 0.8 107 2.1 7.2 2.1 70
YE3-180L-6 15 31.6 970 91.2 0.81 146 2 7.3 2.1 73
YE3-200L1-6 18.5 38.1 970 91.7 0.81 179 2.1 7.3 2.1 73
YE3-200L2-6 22 44.5 970 92.2 0.81 213 2.1 7.4 2.1 73
YE3-225M-6 30 58.6 980 92.9 0.83 291 2 6.9 2.1 74
YE3-250M-6 37 71 980 93.3 0.84 259 2.1 7.1 2.1 76
YE3-280S-6 45 85.9 980 93.7 0.85 434 2.1 7.3 2.1 78
YE3-280M-6 55 104.7 980 94.1 0.86 531 2.1 7.3 2.1 78
380V 5OHz Synchronous Speed 750r/min (8 Poles)
YE3-801-8 0.18 0.81 630 56 0.61 2.5 1.8 3.3 1.9 52
YE3-802-8 0.25 1.1 640 59 0.61 3.4 1.8 3.3 1.9 52
YE3-90S-8 0.37 1.4 660 66 0.61 5.1 1.8 4.0 1.9 56
YE3-90L-8 0.55 2.1 660 70 0.61 7.6 1.8 4.0 2.0 56
YE3-100L1-8 0.75 2.4 690 73.5 0.67 10.2 1.8 4.0 2.0 59
YE3-100L2-8 1.1 3.4 690 76.5 0.69 14.9 1.8 5.0 2.0 59
YE3-112M-8 1.5 4.4 680 77.5 0.7 20 1.8 5.0 2.0 61
YE3-132S-8 2.2 6 710 80 0.71 28.8 1.8 6.0 2.0 64
YE3-132M-8 3 73.9 710 82.5 0.73 39.2 1.8 6.0 2.0 64
YE3-160M1-8 4 10.2 720 85 0.73 52.7 1.9 6.0 2.0 68
YE3-160M2-8 5.5 13.6 720 86 0.74 82.4 1.9 6.0 2.0 68
YE3-160L-8 7.5 17.8 720 87.5 0.75 98.1 1.9 6.0 2.0 68
YE3-180L-8 11 25.2 730 89 0.75 145 2 6.5 2.0 70
YE3-200L-8 15 34 730 90.4 0.76 196 2 6.5 2.0 73
YE3-225S-8 18.5 40.5 740 91.2 0.76 240 1.9 6.6 2.0 73
YE3-225M-8 22 47.3 740 91.5 0.78 286 1.9 6.6 2.0 73
YE3-250M-8 30 63.4 740 92.2 0.79 390 1.9 6.5 2.0 75
YE3-280S-8 37 76.8 740 93 0.79 478 1.9 6.5 2.0 76



3 Phase Electric High Efficiency IE3 Motor , 2 Pole Asynchronous Cooling Fan 0



IE3 Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
