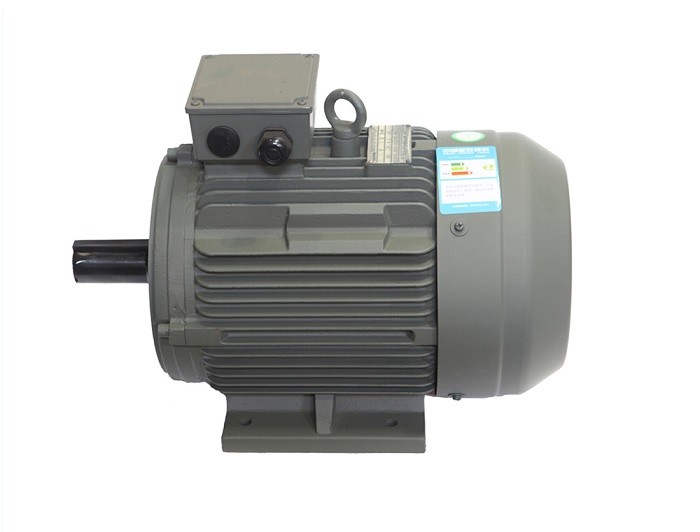

Heavy Duty High Efficiency AC Motor , Three Phase Electric Asynchronous Motor

  • Heavy Duty High Efficiency AC Motor , Three Phase Electric Asynchronous Motor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YE3-71M2-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Altitude 1000 M Body Cast Iron
Output 0.75KW Pole 2
Protection Class IP44/54 Frequency 50Hz/60Hz
Insulation Class B/F/H Product Name IE3 Motor
Highlight

3 phase electric motor

,

ie3 premium efficiency motors
Leave a Message
Product Description

Three-Phase Asynchronous Motor YE3 Heavy Duty Standard High-Efficiency AC Motor

YE3 series three-phase asynchronous electric motor

* Motor conforms to the IEC standard

* High efficiency

* Energy Saving

* High starting torque

* Low noise

* Slight vibration

* Light-weight

* Reliable and convenient operation

* Easy maintenance



IE3 Motor Products Details:

Mfr Number:
YE3-801-2
Min. Ambient Temp.:
-15℃
Power  0.75kw
Max. Ambient Temp.:
40℃
Altitude:
less than 1000m
HZ:
50HZ, 60HZ
Voltage:
380V, 660V, 1140V, 380/660V, 660-1140V
Insulation Class:
B, F
Protection class:
IP54, IP55
Motor Design:
3-Phase Induction Motor
Center height of frame:
132MM
Duty:
Continuous (S1)
Motor Enclosure Design:
Enclosed Fan-Cooled
Frame Material:
Cast Iron
Appearance color:
Blue/Grey/customized color is available
Mounting Position:
IM B3 (Foot type) / IM B5 (Flange type) /
IM B35 (Foot & flange type)





PERFORMANCE CHART:



Model Power
(KW) 		Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Rated
Torque		 Tst/Tn Ist/In Tmax Tmax/Tn
380V 5OHz Synchronous Speed 3000r/min (2 Poles)
YE3-63M1-2 0.18 0.53 2720 63.9 0.8 0.63 2.2 5.5 2.2 61
YE3-63M2-2 0.25 0.7 2720 67.1 0.81 0.88 2.2 5.5 2.2 61
YE3-71M1-2 0.37 1 2740 69 0.81 1.29 2.2 6.1 2.2 62
YE3-71M2-2 0.55 1.4 2740 72.3 0.82 1.92 2.2 6.1 2.2 62
YE3-801-2 0.75 1.8 2830 80.7 0.83 2.5 2.2 7.0 2.3 62
YE3-802-2 1.1 2.5 2840 82.7 0.83 3.65 2.2 7.3 2.3 62
YE3-90S-2 1.5 3.4 2840 84.2 0.84 4.97 2.2 7.6 2.3 67
YE3-90L-2 2.2 4.8 2840 85.9 0.85 7.3 2.2 7.6 2.3 67
YE3-100L-2 3 6.3 2870 87.1 0.87 9.95 2.2 7.8 2.3 74
YE3-112M-2 4 8.2 2890 88.1 0.88 13.1 2.2 8.3 2.3 77
YE3-132S1-2 5.5 11.1 2900 89.2 0.88 17.9 2 8.3 2.3 79
YE3-132S2-2 7.5 15 2900 90.1 0.89 24.4 2 7.9 2.3 79
YE3-160M1-2 11 21.3 2930 91.2 0.89 35.6 2 8.1 2.3 81
YE3-160M2-2 15 28.7 2930 91.9 0.89 48.6 2 8.1 2.3 81
YE3-160L-2 18.5 34.7 2930 92.4 0.89 60 2 8.2 2.3 81
YE3-180M-2 22 41.2 2940 92.7 0.89 71.2 2 8.2 2.3 83
YE3-200L1-2 30 55.3 2950 93.3 0.89 96.6 2 7.6 2.3 84
YE3-200L2-2 37 67.9 2950 93.7 0.89 119 2 7.6 2.3 84
YE3-225M-2 45 82.1 2970 94 0.89 145 2 7.7 2.3 86
YE3-250M-2 55 100.1 2970 94.3 0.89 177 2 7.7 2.3 89
YE3-280S-2 75 134 2970 94.7 0.89 241 1.8 7.1 2.3 91
YE3-280M-2 90 160.2 2970 95 0.89 289 1.8 7.1 2.3 91
380V 5OHz Synchronous Speed 1500r/min (4 Poles)
YE3-63M1-4 0.12 0.45 1310 55.8 0.72 0.87 2.1 4.4 2.2 52
YE3-63M2-4 0.18 0.64 1310 58.6 0.73 1.31 2.1 4.4 2.2 52
YE3-71M1-4 0.25 0.81 1330 63.6 0.74 1.8 2.1 5.2 2.2 55
YE3-71M2-4 0.37 1.1 1330 65.3 0.75 2.66 2.1 5.2 2.2 55
YE3-801-4 0.55 1.4 1390 80.6 0.75 3.67 2.3 6.5 2.3 56
YE3-802-4 0.75 1.9 1390 82.5 0.75 5.01 2.3 6.6 2.3 56
YE3-90S-4 1.1 2.7 1400 84.1 0.76 7.35 2.3 6.8 2.3 59
YE3-90L-4 1.5 3.6 1400 85.3 0.77 10 2.3 7.0 2.3 59
YE3-100L1-4 2.2 4.8 1430 86.7 0.81 14.6 2.3 7.6 2.3 64
YE3-100L2-4 3 6.6 1430 87.7 0.82 19.9 2.3 7.6 2.3 64
YE3-112M-4 4 8.6 1440 88.6 0.82 26.3 2.2 7.8 2.3 65
YE3-132S-4 5.5 11.6 1440 89.6 0.83 35.9 2 7.9 2.3 71
YE3-132M-4 7.5 14.6 1440 90.4 0.84 48.9 2 7.5 2.3 71
YE3-160M-4 11 22.6 1460 91.4 0.85 71.5 2 7.7 2.3 73
YE3-160L-4 15 29.3 1460 92.1 0.86 97.4 2 7.8 2.3 73
YE3-180M-4 18.5 35.45 1470 92.6 0.86 120 2 7.8 2.3 76
YE3-180L-4 22 42.35 1470 93 0.86 143 2 7.8 2.3 76
YE3-200L-4 30 57.6 1475 93.6 0.86 194 2 7.3 2.3 76
YE3-225S-4 37 69.8 1480 93.9 0.86 239 2 7.4 2.3 78
YE3-225M-4 45 84.5 1480 94.2 0.86 290 2 7.4 2.3 78
YE3-250M-4 55 103.1 1485 94.6 0.86 354 2 7.4 2.3 79
YE3-280S-4 75 139.7 1490 95 0.88 481 2 6.7 2.3 80
YE3-280M-4 90 166.9 1485 92.5 0.88 577 2 6.9 2.3 80
380V 5OHz Synchronous Speed 1000r/min (6 Poles)
YE3-71M1-6 0.18 0.76 850 54.6 0.66 2.02 1.9 4.0 2.0 52
YE3-71M2-6 0.25 0.97 850 57.4 0.68 2.81 1.9 4.0 2.0 52
YE3-80M1-6 0.37 1.2 890 68 0.7 3.88 1.9 5.5 2.1 54
YE3-80M2-6 0.55 1.7 890 78 0.71 5.67 1.9 5.8 2.1 54
YE3-90S-6 0.75 2.2 910 78.9 0.71 7.58 2 6.0 2.1 57
YE3-90L-6 1.1 3.8 910 81 0.73 11.1 2 6.0 2.1 57
YE3-100L-6 1.5 3.8 940 82.5 0.73 15.1 2 6.5 2.1 61
YE3-112M-6 2.2 5.4 940 84.3 0.74 21.8 2 6.6 2.1 65
YE3-132S-6 3 7.4 960 85.6 0.74 29.4 1.9 6.8 2.1 69
YE3-132M1-6 4 9.6 960 86.8 0.74 39.2 1.9 6.8 2.1 69
YE3-132M2-6 5.5 12.9 960 88 0.75 53.9 2 7.0 2.1 69
YE3-160M-6 7.5 17 970 89.1 0.79 73.1 2.1 7.0 2.1 70
YE3-160L-6 11 24.2 970 90.3 0.8 107 2.1 7.2 2.1 70
YE3-180L-6 15 31.6 970 91.2 0.81 146 2 7.3 2.1 73
YE3-200L1-6 18.5 38.1 970 91.7 0.81 179 2.1 7.3 2.1 73
YE3-200L2-6 22 44.5 970 92.2 0.81 213 2.1 7.4 2.1 73
YE3-225M-6 30 58.6 980 92.9 0.83 291 2 6.9 2.1 74
YE3-250M-6 37 71 980 93.3 0.84 259 2.1 7.1 2.1 76
YE3-280S-6 45 85.9 980 93.7 0.85 434 2.1 7.3 2.1 78
YE3-280M-6 55 104.7 980 94.1 0.86 531 2.1 7.3 2.1 78
380V 5OHz Synchronous Speed 750r/min (8 Poles)
YE3-801-8 0.18 0.81 630 56 0.61 2.5 1.8 3.3 1.9 52
YE3-802-8 0.25 1.1 640 59 0.61 3.4 1.8 3.3 1.9 52
YE3-90S-8 0.37 1.4 660 66 0.61 5.1 1.8 4.0 1.9 56
YE3-90L-8 0.55 2.1 660 70 0.61 7.6 1.8 4.0 2.0 56
YE3-100L1-8 0.75 2.4 690 73.5 0.67 10.2 1.8 4.0 2.0 59
YE3-100L2-8 1.1 3.4 690 76.5 0.69 14.9 1.8 5.0 2.0 59
YE3-112M-8 1.5 4.4 680 77.5 0.7 20 1.8 5.0 2.0 61
YE3-132S-8 2.2 6 710 80 0.71 28.8 1.8 6.0 2.0 64
YE3-132M-8 3 73.9 710 82.5 0.73 39.2 1.8 6.0 2.0 64
YE3-160M1-8 4 10.2 720 85 0.73 52.7 1.9 6.0 2.0 68
YE3-160M2-8 5.5 13.6 720 86 0.74 82.4 1.9 6.0 2.0 68
YE3-160L-8 7.5 17.8 720 87.5 0.75 98.1 1.9 6.0 2.0 68
YE3-180L-8 11 25.2 730 89 0.75 145 2 6.5 2.0 70
YE3-200L-8 15 34 730 90.4 0.76 196 2 6.5 2.0 73
YE3-225S-8 18.5 40.5 740 91.2 0.76 240 1.9 6.6 2.0 73
YE3-225M-8 22 47.3 740 91.5 0.78 286 1.9 6.6 2.0 73
YE3-250M-8 30 63.4 740 92.2 0.79 390 1.9 6.5 2.0 75
YE3-280S-8 37 76.8 740 93 0.79 478 1.9 6.5 2.0 76



Heavy Duty High Efficiency AC Motor , Three Phase Electric Asynchronous Motor 0



IE3 Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

IE3 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
