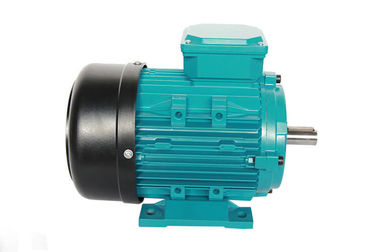

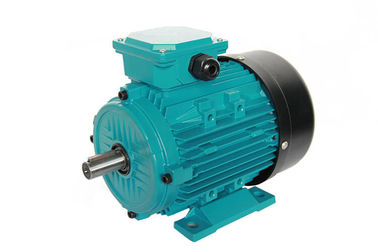

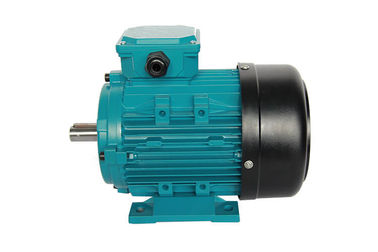

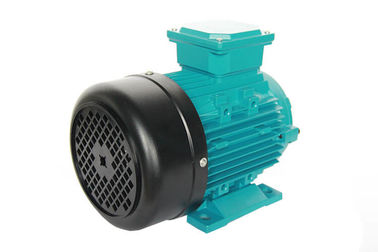

IE1 Efficiency Three Phase Induction Motor With Thermal Protection (PTC) 1.5kw 2 HP

  • IE1 Efficiency Three Phase Induction Motor With Thermal Protection (PTC) 1.5kw 2 HP
  • IE1 Efficiency Three Phase Induction Motor With Thermal Protection (PTC) 1.5kw 2 HP
  • IE1 Efficiency Three Phase Induction Motor With Thermal Protection (PTC) 1.5kw 2 HP
  • IE1 Efficiency Three Phase Induction Motor With Thermal Protection (PTC) 1.5kw 2 HP
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS90S-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Speed 2860 RPM Rated Power 1.5KW / 2HP
Moment Of Inertia (J) 0.0017 Kgm² LRC 6.3
Breakdown Torque 260 % Number Of Poles 2 (2860RPM)
Terminal Box On The Top Standard IEC 60034-1
Product Name 3 Phase Induction Motor
Highlight

three phase induction motor

,

squirrel cage electric motor
Leave a Message
Product Description



Three Phase IE1 Efficiency Motors With Thermal Protection (PTC) 1.5kw 2 HP.





3 Phase Induction Motor  DESCRIPTION



This three-phase, efficient induction motor for an air compressor and other appliances. The electric motor has a rated output of 2 horsepower and 400 volts. It is built with a heavy-gauge steel frame for ongoing reliability and strength. It has an open drip-proof tandem fan enclosure to protect against dripping water and coolant. Meet to IEC one standard with thermal protection.​



3 Phase Induction Motor TECHNICAL DATA:



Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS90S-2 2 1.5 380 50 3.36 0.87 78 2800 2.2 2.4 4.5





3 Phase Induction Motor  APPLICATION



1. Conveyors



2. Material Handling



3. Centrifugal Blowers



4. Printing presses



5. Grinding machine




MOTOR FEATURE



1. Aluminum frame, end shields, and base



2. Frame size: 56-132



3. Model of CONNECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more



4. Three-phase asynchronous high torque low rpm electric motor with aluminum housing




ADVANTAGE



1. Perfect finish



2. High efficient



3. Noise Free



4. Durable



5. Smooth finishing



6. Have Rich Experience and Strong ability to Develop New Products





INSTALLATION SIZE



Frame No. Installation Size Installation Size For B14 Installation Size For B5 Overall Dimension
A B C D E F G H K M N P S T M N P S T AB AC AD HD L
90S 140 100 56 24 50 8 20 90 10 115 95 140 M8 3 165 130 200 12 3.5 175 175 123 213 316





3 Phase Induction Motor GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available. Feel free to contact us.


4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.




FAQ


1. Q: What's the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
