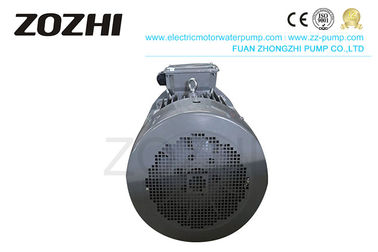

IP54 3KW IE3 Motor Cast Iron Body Material 2890Rpm Speed 2 Poles IE3-100L-2

  • IP54 3KW IE3 Motor Cast Iron Body Material 2890Rpm Speed 2 Poles IE3-100L-2
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number IE3-100L-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE3 Motor Application General Driving
Output 3kw Pole 2
Protection Class IP54 Frequency 60Hz
Insulation Class B Rate Voltage 400V
Body Material Cast Iron Speed 2890Rpm
Standard CE,IEC60034
Highlight

ie3 electric motors

,

3 phase electric motor
Leave a Message
Product Description





IP54 3KW IE3 Motor Cast Iron Body Material 2890Rpm Speed 2 Poles IE3-100L-2









Model NO.: IE3-100L-2
Operating Speed: Low Speed
Species: IE3 Premium Efficiency Motor Three-Phase
Casing Protection: Closed Type
Starting Mode: Direct online Starting
Brand: ZOZHI
Voltage:400V
Protection Class: IP55/IP55
Transport Package: Carton
Origin: NINGDE, China
Application: Industrial, Universal, Household Appliances, Power Tools
Number of Stators: Three-Phase
Rotor Structure: Squirrel-Cage
Number of Poles: 2
Certification: ISO9001, CCC, CE
Rated Power: 3KW
Frequency:60Hz
Mounting Position: Imb3/B5/B35/B14/B34
Insulation Grade: B/F
Continuous Working Duty: S1
Specification: IEC 60034-30: 2008
HS Code: 8501

IP54 3KW IE3 Motor Cast Iron Body Material 2890Rpm Speed 2 Poles IE3-100L-2 0



Performance Chart:

IP54 3KW IE3 Motor Cast Iron Body Material 2890Rpm Speed 2 Poles IE3-100L-2 1

IP54 3KW IE3 Motor Cast Iron Body Material 2890Rpm Speed 2 Poles IE3-100L-2 2



Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8











IE3 Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



IE3 Motor Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
