IP65 Water Pump Easy Spare Parts Pressure Sensor Control Switch 1.1KW 50/60HZ
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max. Voltage | 220-240V | Frequency | 50/60HZ |
|---|---|---|---|
| Max. Current | 10A | Max. Working Pressure | 1Mpa(10bar) |
| Application | Water Pump | Max Ambient Temperature | 60 ℃ |
| Protection Degree | IP65 | ||
| Highlight | ac generator parts,alternator generator parts |
||
Product Description
Automatic Pressure Sensor Control Switch Easy Spare Parts For Water Pump
DESCRIPTION:
Automatic pump controller Water pump electronic pressure controller can replace the complicated installations of automatic water pump e.g. pressure gauge, pressure switch, T-valve, check valve, and pressure tank ). It has the features of stable performance, low maintenance, and a long lifespan.
TECHNICAL DATA:
| Item Name | water pump automatic pressure sensor switch |
| Max Rated Current | 10A |
| Max Allowable Pressure | 1Mpa ( 10bar ) |
| Rated Voltage | 220V-240V |
| Frequency | 50/60HZ |
| Max Ambient Temperature | 60 ℃ |
| Connection | 1" male |
| Protection Degree | IP65 |
| Max Power | 1.1KW |
| Logo Custom | Custom |
FEATURE:
1. Economic automatic Water pump pressure switch used in water systems.
2. It starts the electric pump automatically after a pressure decrease(taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump(taps closed).
3. Joint screw: G1"
4. Completely replaced traditional pump control system composed of the pressure switch, pressure tank, and check valve, etc.
5. Stop the water pump in the case of a water shortage.
6. Customized setting.
ADVANTAGE:
First, the pump automatic controller (also called pressure controller), can automatically control the switch of various pumps. Not only is it low noise, but it also helps protect the environment, and it is durable.
Second, the use of automatic pump control: automatic pump opening and closing, effectively maintaining the pressure of the water circulation system. Protect the pump from idling.

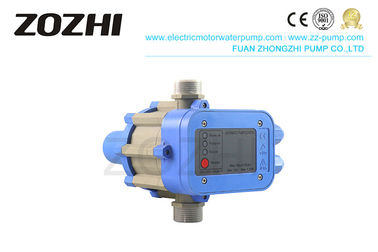

PRODUCE PICTURE:
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
