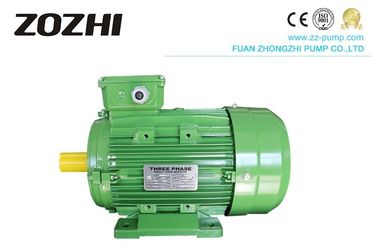

3 Phase Squirrel Cage High Efficiency Induction Motor Aluminium Housing 0.75kw 1Hp

  • 3 Phase Squirrel Cage High Efficiency Induction Motor Aluminium Housing 0.75kw 1Hp
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number IE2 MS802-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name IE2 Motor Output 0.75kw/1HP
Voltage 400v 60hz Low Voltage Winding Material 100% Copper Wire
Standard IEC 2 Housing Aluminum
Pole 4 Phase 3 Phase
Highlight

high efficiency induction motor

,

high efficiency ac motor
Leave a Message
Product Description

3 Phase Squirrel Cage High-Efficiency Aluminium Housing Induction Motor 0.75kw 1Hp





IE2 High-Efficiency Motor

The motor is a three-phase squirrel-cage asynchronous induction motor. The end shield with the radiating rib makes the appearance good-looking and improves the heat dissipation. It has the outstanding performance of high efficiency, energy-saving, and reliable operation, etc.




Model Output Voltage Current Speed Eff(%) P.F. Ist/In Tmax/Tn
(V) (A) (r/min) 50%/75%/100%
IE2 MS802-4 0.75KW/1HP 230/400 3.28/1.9 1380 77.3/79.8/79.6 0.720 2.3 2.3





3 Phase Squirrel Cage High Efficiency Induction Motor Aluminium Housing 0.75kw 1Hp 0





Rated output: 0.75kW ( aluminum Frame)

Cast iron Frame: 80

Standard mounting construction according to IEC 60034-7: IMB3, IM B5, IM B35, etc.

Squirrel cage rotor/Aluminium die-cast

Continuous duty: S1

Protection grade: IP55

Insulation class: F

Self ventilated motors with radial-flow fans (cooling method IC411 according to IEC 60034-6) as standard

forced air cool with

The altitude of the working environment shall not exceed 1000m above sea level (IEC 60034-1).


IE2 Motor PERFORMANCE CHART:



3 Phase Squirrel Cage High Efficiency Induction Motor Aluminium Housing 0.75kw 1Hp 1

3 Phase Squirrel Cage High Efficiency Induction Motor Aluminium Housing 0.75kw 1Hp 2





3 Phase Squirrel Cage High Efficiency Induction Motor Aluminium Housing 0.75kw 1Hp 3





Performance comparison chart:





ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110     94.5 95.4
132     94.7 95.6
160     94.9 95.8
200...375     95.1 96.0

IE2 Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
