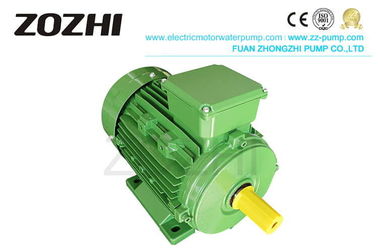

Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency

  • Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency
  • Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number IE2 MS802-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name IE2 Motor Output 1.1kw/1.4Hp
Voltage 230/400V/60HZ Winding Material 100% Copper Wire
Standard IEC 2 Housing Aluminum
Pole 4 Phase 3 Phase
Highlight

high efficiency induction motor

,

high efficiency ac motor
Leave a Message
Product Description

premium Efficiency induction motors Low noise 4pole 0.75kw 1400rpm Ms802-4

Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 0

IE2 High-Efficiency Motor

premium efficiency three-phase asynchronous motors is a fully closed, self-fan cold mouse cage three-phase asynchronous motor manufactured with new materials, have high efficiency, high starting torque, low noise, more reasonable structure, and cooling conditions mature.

Operating conditions:
Ambient temperature: -15°C~40°C
Altitude: Altitude should be higher than 1000 meters above sea level.
Rated voltage: 380V,400V,415V,440V. Rated frequency: 50Hz,60Hz.
Connection: Y Star-connection for 3kw or less whereas and delta-connection.
Duty/Rating: Continuous (S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K
(by resistance method).
Protection class: IP55.
Cooling method: IC411.




Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 1



PERFORMANCE CHART:

Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 2
Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 3
Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 4

Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110     94.5 95.4
132     94.7 95.6
160     94.9 95.8
200...375     95.1 96.0



Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 5

hollow shaft motor aluminium housing motor Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 8
Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 9 Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 10 Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 11
Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 12 Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 13 Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency 14



IE2 Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
