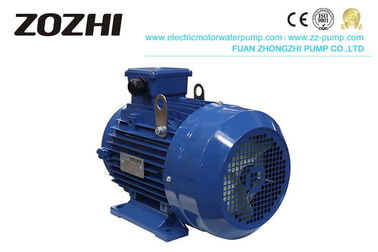

380v 1hp 750 Watt Three Phase Induction Motor High Reliability For Cutting Machine

Place of Origin	China
Brand Name	ZOZHI
Certification	ISO
Model Number	MS802-4
Minimum Order Quantity	1pc
Price	negotiated
Packaging Details	Packed in cartons,veneer case or wooden case.
Delivery Time	25 working days after received your payment
Payment Terms	T/T, L/C
Supply Ability	10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	3 Phase Induction Motor	Application	Woodworking Machinery
Output	0.75KW/1HP	Pole	4
Efficiency	IE1,IE2,IE3	Performance	High Reliability
Capacitor Type	Capacitor Running	Phase	THREE Phase
Highlight	three phase induction motor , squirrel cage electric motor

Leave a Message

Product Description

380v 1hp 750 watts three-phase ac motor specification for Cutting Machine

3 Phase Induction Motor

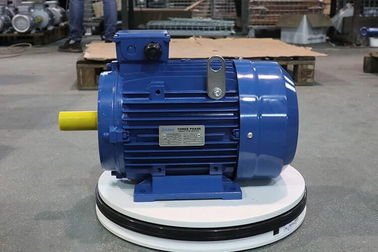

380v 1hp 750 Watt Three Phase Induction Motor High Reliability For Cutting Machine 0

ZOZHI three-phase asynchronous motor is specially designed for the Internation market, whose terminal box is Iocated on the top of the motor. The motor has some good features, such as high efficiency energy-saving. It can be used in cutting machines.

1) Adopt NSK Bearings with low energy consumption and quiet operation.
2) External heat sink to deliver maximum thermal performance designed for being easy maintenance and repair.

380v 1hp 750 Watt Three Phase Induction Motor High Reliability For Cutting Machine 1

380v 1hp 750 Watt Three Phase Induction Motor High Reliability For Cutting Machine 2

ZOZHI pump motor made of selected quality material, the latest design in entirety, Good performance, low noise, slight vibration, and safety and reliable cooperation
1.100% copper wire, cold-rolled silicon steel sheet, and complimentary accessories
2. Advanced three-phase brushless motor
3. C.E. certificate
380v 1hp 750 Watt Three Phase Induction Motor High Reliability For Cutting Machine 3

High-quality Capacitor

Adopt suitable capacitor made by advanced production line, heat resistant to 85℃. The working lift is motor than 10000 hours.

Cold-rolled Stator

Good quality cold-rolled silicon from the wugang brand made by high-speed punching machine, less burr, high concentricity, and stability.

Coil with 100% Copper wire

100% copper wire, with thermal protector, make the pump stop working automatically at the condition of jam or overload, etc.

No leakage Of winding

100% coil testing to make sure each coil is energized, and no leakage at high voltage condition

380v 1hp 750 Watt Three Phase Induction Motor High Reliability For Cutting Machine 4

3 Phase Induction Motor

380v 1hp 750 Watt Three Phase Induction Motor High Reliability For Cutting Machine 5

The revised standard includes the following line-motors
Model	MS802-4
Power range	0.75KW
Level	IE1-Standard Efficiency IE2-High Efficiency IE3-Premium Efficiency
Voltage	230/400V/60Hz
Degree of protection	all
Operating mode	S1(permanent operation with constant load); motors that are designed for different operating modes but can still be operated permanently with rated output.
Degree of temperature	-20^. C- + 60^.C
Altitude	Up to 4000m above sea level
Number of Poles	4
Validity	Standard IEC

IE3 Premium Efficiency

Model	Power		(V)	(A)	Spee d r/min	Eff. (%)			P.F.	Tstart/Tn	Ist/In
Model	Kw	HP	(V)	(A)	Spee d r/min	50%	75%	100%	P.F.	Tstart/Tn	Ist/In
IE3 MS801-2	0.75	1	230/400	2.82/1.63	2820	79.7	81.0	80.7	0.831	2.3	6.0
IE3 MS802-2	1.1	1.5		4.0/2.3	2820	81.5	82.9	82.7	0.836	2.3	7.5
IE3 MS90S-2	1.5	2		5.23/3.02	2840	84.0	85.0	84.2	0.857	2.4	7.5
IE3 MS90L-2	2.2	3		7.44/4.3	2840	86.0	86.5	85.9	0.865	2.4	7.5
IE3 MS100L-2	3	4		9.9/5.72	2850	88.2	87.3	87.1	0.873	2.4	8.0
IE3 MS112M-2	4	5.5	400/690	7.48/4.32	2870	88.0	88.4	88.1	0.880	2.4	8.5
IE3 MS132S1-2	5.5	7.5		10/5.8	2900	89.1	89.6	89.2	0.890	2.2	7.5
IE3 MS132S2-2	7.5	10		13.5/7.8	2900	90.0	90.5	90.1	0.892	2.2	7.5
IE3 MS160M1-2	11	15		19.5/11.3	2920	89.8	91.3	91.2	0.896	2.2	8.5
IE3 MS160M2-2	15	20		26.2/15.1	2920	91.6	92.0	91.9	0.805	2.2	8.5
IE3 MS160L-2	18.5	25		31.9/18.4	2920	92.1	92.5	92.4	0.910	2.2	8.5
IE3 MS802-4	0.75	1	230/400	2.97/1.72	1400	81.0	82.7	82.5	0.770	2.4	7.0
IE3 MS90S-4	1.1	1.5		4.25/2.45	1420	82.6	84.3	84.1	0.775	2.4	7.5
IE3 MS90L-4	1.5	2		5.68/3.28	1420	83.8	85.4	85.3	0.778	2.4	8.0
IE3 MS100L1-4	2.2	3		8.0/4.62	1440	84.3	86.7	86.7	0.798	2.4	8.0
IE3 MS100L2-4	3	4		10.8/6.2	1440	86.0	87.6	87.7	0.801	2.4	8.0
IE3 MS112M-4	4	5.5	400/690	7.97/4.6	1450	88.3	88.8	88.6	0.821	2.4	7.5
IE3 MS132S-4	5.5	7.5		10.8/6.2	1450	89.0	89.7	89.6	0.825	2.3	7.5
IE3 MS132M-4	7.5	10		14.4/8.32	1450	90.1	90.6	90.4	0.834	2.3	7.5
IE3 MS160M-4	11	15		20.8/12.0	1460	90.5	91.5	91.4	0.838	2.2	7.0
IE3 MS160L-4	15	20		27.9/16.1	1460	91.5	92.5	92.1	0.847	2.2	7.0
IE3 MS90S-6	0.75	1	230/400	3.42/1.97	910	77.5	94.4	78.9	0.700	2	4.0
IE3 MS90L-6	1.1	1.5		4.8/2.78	910	80.2	81.3	81.0	0.710	2	4.0
IE3 MS100L1-6	1.5	2		6.35/3.66	930	81.3	82.6	82.5	0.720	2	5.0
IE3 MS112M-6	2.2	3		8.98/5.2	940	83.2	85.0	84.3	0.730	2	5.0
IE3 MS132S-6	3	4		11.9/6.87	960	84.5	85.8	85.6	0.740	2.2	6.5
IE3 MS132M1-6	4	5.5	400/690	9.0/5.2	960	85.3	86.9	86.8	0.745	2.2	7.0
IE3 MS132M2-6	5.5	7.5		12.1/7.0	960	86.9	88.2	88.0	0.750	2.2	7.0
IE3 MS160M-6	7.5	10		16.1/9.3	970	87.5	89.0	89.1	0.760	2.2	7.0
IE3 MS160L-6	11	15		22.9/13.2	970	89.0	90.2	90.3	0.770	2.2	7.0

IE2 High Efficiency

Model	Power		(V)	(A)	(r/min)	Eff. (%)			P.F.	Ist/In	Tmax/Tn
Model	Kw	HP	(V)	(A)	(r/min)	50%	75%	100%	P.F.	Ist/In	Tmax/Tn
IE2 MS801-2	0.75	1	230/400	3.0/1.73	2800	76.5	77.3	77.4	0.813	2.2	2.3
IE2 MS802-2	1.1	1.5		4.2/2.43	2800	79.0	80.0	79.6	0.825	2.2	2.3
IE2 MS90S-2	1.5	2		5.53/3.19	2820	80.2	81.5	81.3	0.837	2.2	2.3
IE2 MS90L-2	2.2	3		7.93/4.58	2820	82.2	83.5	83.2	0.837	2.2	2.3
IE2 MS100L-2	3	4		10.5/6.06	2830	84.0	85.1	84.6	0.848	2.2	2.3
IE2 MS112M-2	4	5.5	400/690	7.97/4.6	2850	85.4	86.8	85.8	0.848	2.2	2.3
IE2 MS132S1-2	5.5	7.5		10.65/6.15	2870	86.7	87.3	87.0	0.860	2	2.3
IE2 MS132S2-2	7.5	10		14.35/8.28	2870	87.6	88.3	88.1	0.860	2	2.3
IE2 MS160M1-2	11	15		20.74/11.97	2900	89.0	89.8	89.4	0.860	2	2.3
IE2 MS160M2-2	15	20		27.99/16.16	2900	90.0	90.5	90.3	0.860	2	2.3
IE2 MS160L-2	18.5	25		33.83/19.53	2900	90.3	91.0	90.9	0.872	2	2.2
IE2 MS802-4	0.75	1	230/400	3.28/1.9	1380	77.3	79.8	79.6	0.720	2.3	2.3
IE2 MS90S-4	1.1	1.5		4.57/2.64	1400	79.9	81.7	81.4	0.743	2.3	2.3
IE2 MS90L-4	1.5	2		6.02/3.48	1400	82.1	83.5	82.8	0.755	2.3	2.3
IE2 MS100L1-4	2.2	3		8.42/4.86	1420	82.6	84.5	84.3	0.778	2.2	2.3
IE2 MS100L2-4	3	4		11.32/6.54	1420	84.2	85.7	85.5	0.778	2.2	2.3
IE2 MS112M-4	4	5.5	400/690	8.47/4.89	1430	85.8	87.0	86.6	0.790	2.2	2.3
IE2 MS132S-4	5.5	7.5		11.18/6.45	1450	87.4	88.3	87.7	0.813	2.2	2.3
IE2 MS132M-4	7.5	10		14.85/8.58	1450	88.2	89.0	88.7	0.825	2.2	2.3
IE2 MS160M-4	11	15		21.84/12.61	1460	89.1	90.0	89.8	0.813	2.2	2.3
IE2 MS160L-4	15	20		29.08/16.79	1460	90.2	91.1	90.6	0.825	2.2	2.3
IE2 MS90S-6	0.75	1	230/400	3.82/2.2	910	73.4	76.3	75.9	0.650	2	2.2
IE2 MS90L-6	1.1	1.5		5.25/3.03	910	77.0	78.8	78.1	0.673	2	2.2
IE2 MS100L-6	1.5	2		6.77/3.91	940	79.6	80.8	79.8	0.697	2	2.2
IE2 MS112M-6	2.2	3		9.69/5.59	940	80.4	81.6	81.8	0.697	2	2.2
IE2 MS132S-6	3	4		12.56/7.25	960	81.0	83.4	83.3	0.720	2	2.2
IE2 MS132M1-6	4	5.5	400/690	9.36/5.4	960	82.7	84.5	84.6	0.732	2	2.2
IE2 MS132M2-6	5.5	7.5		12.47/7.2	960	84.8	86.2	86.0	0.743	2	2.2
IE2 MS160M-6	7.5	10		16.78/9.69	970	86.4	87.5	87.2	0.743	2	2
IE2 MS160L-6	11	15		24.19/13.97	970	88.2	89.2	88.7	0.743	2	2

IE1 Standard Efficiency

Model	Power		(V)	(A)	P.F.	Eff.(%)	Speed (r/min)	Tstart/Tn	Tmax/Tn	Ist/In(A)
Model	kW	HP	(V)	(A)	P.F.	Eff.(%)	Speed (r/min)	Tstart/Tn	Tmax/Tn	Ist/In(A)
MS561-2	0.09	0.12	220/380	0.57/0.33	0.68	62	2800	2.3	2.4	6
MS562-2	0.12	0.16	220/380	0.67/0.38	0.71	67	2800	2.3	2.4	6
MS631-2	0.18	0.24	220/380	0.91/0.53	0.75	69	2800	2.2	2.4	6
MS632-2	0.25	0.33	220/380	1.17/0.68	0.78	72	2800	2.2	2.4	6
MS711-2	0.37	0.5	220/380	1.65/0.95	0.80	73.5	2800	2.2	2.4	6
MS712-2	0.55	0.75	220/380	2.33/1.35	0.82	75.5	2800	2.2	2.4	6
MS801-2	0.75	1	220/380	3.03/1.75	0.85	76.5	2800	2.2	2.4	6
MS802-2	1.1	1.5	220/380	4.42/2.55	0.85	77	2800	2.2	2.4	6
MS90S-2	1.5	2	220/380	6.01/3.84	0.85	77	2800	2.2	2.4	6
MS90L-2	2.2	3	220/380	8.61/4.98	0.86	78	2800	2.2	2.4	6
MS100L-2	3	4	220/380	11.1/6.4	0.87	82	2870	2.2	2.3	7
MS112M-2	4	5.5	380/660	8.2/4.7	0.87	85.5	2890	2.2	2.3	7
MS132S1-2	5.5	7.5	380/660	11/6.4	0.88	85.5	2900	2.0	2.2	7
MS132S2-2	7.5	10	380/660	15/8.6	0.88	86.2	2900	2.0	2.2	7
MS160M1-2	11	15	380/660	21.3/12.2	0.88	88	2930	2.0	2.2	7
MS160M2-2	15	20	380/660	28.7/16.4	0.89	89	2930	2.0	2.2	7
MS160L-2	18.5	25	380/660	34.6/19.8	0.90	90	2930	2.0	2.2	7
MS180M-2	22	30	380/660	40.9/23.4	0.90	90.5	2930	2.0	2.2	7
MS561-4	0.06	0.08	220/380	0.49/0.28	0.58	56	1400	2.3	2.4	6
MS562-4	0.09	0.12	220/380	0.67/0.39	0.61	58	1400	2.3	2.4	6
MS631-4	0.12	0.16	220/380	0.84/0.48	0.63	60	1400	2.2	2.4	6
MS632-4	0.18	0.24	220/380	1.12/0.65	0.66	64	1400	2.2	2.4	6
MS711-4	0.25	0.33	220/380	1.44/0.83	0.68	67	1400	2.2	2.4	6
MS712-4	0.37	0.5	220/380	0.94/1.12	0.72	69.5	1400	2.2	2.4	6
MS801-4	0.55	0.75	220/380	2.69/1.56	0.73	73.5	1400	2.2	2.4	6
MS802-4	0.75	1	220/380	3.48/2.01	0.75	75.5	1400	2.2	2.4	6
MS90S-4	1.1	1.5	220/380	4.74/2.75	0.78	78	1400	2.2	2.4	6
MS90L-4	1.5	2	220/380	6.31/3.65	0.79	79	1400	2.2	2.3	7
MS100L1-4	2.2	3	220/380	8.6/5.0	0.82	81	1430	2.2	2.3	7
MS100L2-4	3	4	220/380	11.7/6.8	0.81	82.5	1430	2.2	2.3	7
MS112M-4	4	5.5	380/660	8.8/5.1	0.82	84.5	1440	2.2	2.2	7
MS132S-4	5.5	7.5	380/660	12/6.9	0.84	85.5	1440	2.2	2.2	7
MS132M-4	7.5	10	380/660	15/8.6	0.85	87	1440	2.2	2.2	7
MS160M-4	11	15	380/660	22.3/12.7	0.85	88	1460	2.2	2.2	7
MS160L-4	15	20	380/660	30/17.1	0.85	89	1460	2.0	2.2	7
MS180M-4	18.5	25	380/660	36.4/20.8	0.85	90.5	1470	2.2	2.2	7.5
MS180L-4	22	30	380/660	43.1/24.6	0.85	91	1470	2.2	2.2	7.5
MS90S-6	0.75	1	220/380	4.0/2.3	0.70	72.5	910	2.2	2.2	5.5
MS90L-6	1.1	1.5	220/380	5.5/3.2	0.72	73.5	910	2.2	2.2	5.5
MS100L-6	1.5	2	220/380	6.9/4.0	0.74	77.5	940	2.2	2.2	6
MS112M-6	2.2	3	220/380	9.7/5.6	0.74	80.5	940	2.2	2.2	6
MS132S-6	3	4	220/380	12.4/7.2	0.76	83	960	2.2	2.0	6.5
MS132M1-6	4	5.5	380/660	9.4/5.4	0.77	84	960	2.0	2.0	6.5
MS132M2-6	5.5	7.5	380/660	13/7.5	0.78	85.3	960	2.0	2.0	6.5
MS160M-6	7.5	10	380/660	16.5/9.43	0.80	87.5	970	2.0	2.0	6.5
MS160L-6	11	15	380/660	24.1/13.8	0.79	89	970	2.0	2.0	6.5
MS180L-6	15	20	380/660	31.5/18	0.81	86	970	2.0	2.0	7.0
MS132S-8	2.2	3	220/380	10/5.8	0.71	85.5	710	2.0	2.0	5.5
MS132M-8	3	4	220/380	13.3/7.7	0.72	82	710	2.0	2.0	5.5
MS160M1-8	4	5.5	380/660	10.2/5.8	0.73	81	720	2.0	2.0	6.0
MS180M2-8	5.5	7.5	380/660	13.6/7.8	0.74	83	720	2.0	2.0	6.0
MS160L-8	7.5	10	380/660	17.7/10.1	0.75	85.5	720	2.0	2.0	6.0
MS180L-8	11	15	380/660	25.1/14.3	0.76	87.5	730	2.0	2.0	6.5

Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

Tags:

Electric Motor Water Pump

Hollow Shaft Motor

3 Phase Induction Motor

Single Phase Induction Motor

IE2 Motor

IE3 Motor

Pool Pump Motor

Hydraulic Pump Electric Motor

Centrifugal Water Pump

Peripheral Water Pump

Self Priming Pump

Automatic Water Pump

Multistage Centrifugal Pump

Deep Well Pump

AC Electric Generator

Open Diesel Generator

Easy Spare Parts

380v 1hp 750 Watt Three Phase Induction Motor High Reliability For Cutting Machine

three phase induction motor

squirrel cage electric motor

380v 1hp 750 watts three-phase ac motor specification for Cutting Machine

3 Phase Induction Motor

3 Phase Induction Motor

squirrel cage electric motor

three phase induction motor

3 phase asynchronous motor

MS802-4 Three Phase IP54 0.75kw Aluminum Electric Motor

Aluminum MS100L2-4 3kw 4HP 3 Phase Electric Motor

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty

MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor

Ie1 Ie2 Ie3 2.2kw 4kw 5.5kw 7.5kw Three Phase Hollow Shaft Ac Electric Washer Washing Machine Motor For Pressure Pump

Three Phase Ac Induction Asynchronous Hollow Shaft Motor 1HP 2HP 3HP 4HP 5HP 10HP 220V 380V Car Washer

ZOZHI IE3 50Hz 4HP 3KW Three-Phase Efficiency 220V 380V Electric Motor for Air Cleaning Equipment

Three Phase High Pressure Washer Pump Hollow Shaft Motor for Car Washing Machine

Electric Motor Water Pump

Hollow Shaft Motor

3 Phase Induction Motor
