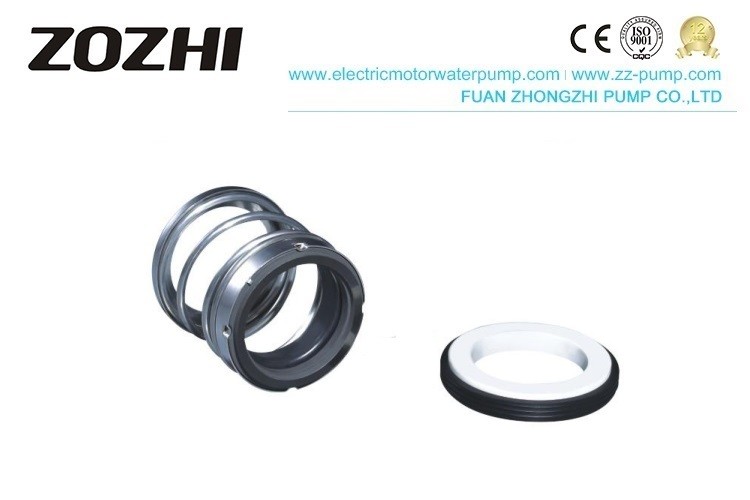

Single Face Easy Spare Parts Burgmann 560A Elastomer Bellows Mechanical Seal

  • Single Face Easy Spare Parts Burgmann 560A Elastomer Bellows Mechanical Seal
  • Single Face Easy Spare Parts Burgmann 560A Elastomer Bellows Mechanical Seal
Place of Origin FUAN
Brand Name ZOZHI
Certification CE, ISO9001
Model Number 560A
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Standard Size Feature Rubber Bellows Mechanical Seal
Speed 10m/sec Model Number 560A
Application Water Pump;Ruducer Pressure ≤0.8Mpa
Material Type SIC/ INSERTED TC Working Temp -20~150℃
Highlight

water pump parts

,

ac generator parts
Leave a Message
Product Description

Easy Spare Parts Sealed with the Burgmann 560A Elastomer Bellows Mechanical Seal For Water Pump



Design Features

Single face, single spring, unbalanced, rubber bellows structure

The seal face is driven through the interferential shrink of the rubber piece, close structure, good floating

Many sizes and specification designs have a wide application range



Materials(to DIN24960)




- Rotary Ring: B,U1,U2,Q1,Q2

- Stationary Ring: U1,  U2,Q1,Q2,V1,V2

- Auxiliary Seal: P,E,V
- Spring and Other Parts: F/ G



Operating limits


- Temperature: -20~150℃

- Pressure: ≤ 0.8MPa
- Speeds: ≤10m/sec



Applications

Used in auto-cooling pumps, centrifugal pumps, submersible pumps, and general industrial pumps.



Medium

Oil, water, and other weak corrosive fluid.


Size Information

mechnical seal 560A

Model d1 d3 D7 L1 L3 L4
560A-8 8 17.5 21 18.9 13.9 5.0
560A-10 10 21.0 24 23 16.5 6.5
560A-11 11 21.0 24 23 16.5 6.5
560A-12 12 22.8 26 24 17.5 6.5
560A-13 13 22.8 26 24 17.5 6.5
560A-14 14 26.5 28 25 18.0 7.0
560A-15 15 26.5 28 25 18.0 7.0
560A-16 16 26.5 32 27 20.0 7.0
560A-17 17 30.0 32 26 19.0 7.0
560A-18 18 30.0 35 26 19.0 7.0
560A-19 19 30.0 35 26 18.0 8.0
560A-20 20 32.5 38 28 19.5 8.5
560A-22 22 34.0 40 28 20.0 8.0
560A-25 25 40.0 44 29 20.0 9.0
560A-28 28 44.5 46 30 21.0 9.0
560A-30 30 46.5 50 31 22.0 9.0
560A-32 32 46.5 54 33 24.0 9.0
560A-35 35 51.5 58 36 26.0 10.0
560A-38 38 54.0 60 37 27.0 10.0
560A-40 40 58.0 64 38 28.0 10.0
560A-45 45 61.5 66 40 30.0 10.0
560A-50 50 71.0 72 42 32.0 10.0



More Products

WATER PUMP SEAL MECHNICAL SEAL Single Face Easy Spare Parts Burgmann 560A Elastomer Bellows Mechanical Seal 3 MECHNICAL SEAL
MECHNICAL SEAL MECHNICAL SEAL MECHNICAL SEAL BIA MECHNICAL SEAL M7N
Single Face Easy Spare Parts Burgmann 560A Elastomer Bellows Mechanical Seal 9 M1K Single Face Easy Spare Parts Burgmann 560A Elastomer Bellows Mechanical Seal 11 Single Face Easy Spare Parts Burgmann 560A Elastomer Bellows Mechanical Seal 12




easy spare parts for motor

hollow shaft motor

water pump

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.

FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
