100% Copper Wiring Hollow Shaft Motor Horizontal Aluminum Housing IE 2 Efficiency

High Efficient 100% Copper Wiring Horizontal Aluminum Housing Hollow Shaft Asynchronous Electric Motor

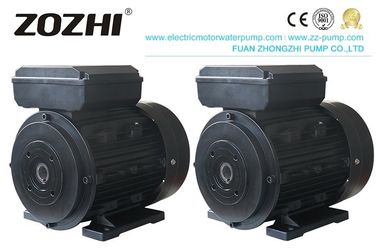

Hollow Shaft Motor

H.S. hollow shaft motor, high-quality magnetic material, hollow metal tube design, with internal joints, designed with new technology, high quality fully enclosed squirrel cage energy efficient for professional equipment tailored hollow shaft motor.

Hollow shaft design dramatically reduces the quality of parts, 100% copper coil, C&U bearing, shaft extension through high-frequency quenching treatment, improving mechanical strength, effectively decreasing temperature rise, good heat dissipation, and low noise. The assembly process is rigorous and seamlessly connected with professional equipment for worry-free operation. It is ideal for cleaning equipment.

 Phase: three-phase

 Model: HS112M2-4

 Power: 5.5KW/7.5HP

 Frame: 112

 No of poles:4

 Frequency: 50Hz

 Voltage:400V

 Brand: ZOZHI

Advantage:

1. Use high-quality magnetic materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.

2. the use of high-quality bearings, rigorous assembly process to achieve low noise operation.

3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.

Protection

hollow shaft motor is IP-44 protection as defined in IS:4691 Motors can be supplied with IP-54 and IP-55 on request

Insulation

Hollow shaft motors supply with class B&F insulation as a standard feature. Also, supply H on request of the customer.

Terminal Box

all three-phase motor supply with a terminal box on top position for Foot mounted. Other position boxes like left or right supply on customer request.

Shaft

Hollow shaft motor shaft made from high carbon steel pipe to provide exceptional strength&rigidity to minimize deflection. we can also supply the motor with stainless steel hollow shaft

Rotor

All hollow shaft motor rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Thus, it makes low motor amplitudes of vibration & noise.

Bearing&Lubrication:

hollow shaft motor bearings are adequately lubricated with lithium-based high temp up to 150 deg. all the motors are supplied with a C3 ball bearing & fully charged with lithium base grease at the time of assembly

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request

Application

hollow shaft motor is widely used in clean machine, car washer

Production data

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
