7.5kw 4 Pole 3000rpm Asynchronous Induction Motor IP54/IP55 With Hollow Shaft

  • 7.5kw 4 Pole 3000rpm Asynchronous Induction Motor IP54/IP55 With Hollow Shaft
  • 7.5kw 4 Pole 3000rpm Asynchronous Induction Motor IP54/IP55 With Hollow Shaft
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS132S2-2
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Cleaning Machine
Output 7.5KW/10HP Pole 2
Motor Bearing C&U (SKF For Choice) Efficiency IE 2
Protection Class IP54/IP55 Insulation Class F Class
Highlight

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

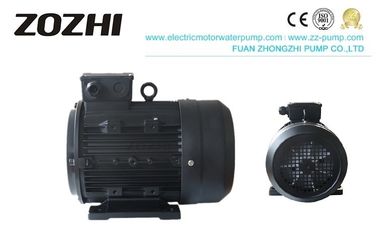

7.5kw 4pole 3000rpm asynchronous induction motor with hollow shaft

Hollow Shaft Motor

Hollow shaft motor is based on the original standard motor technology, using high-quality magnetic material, hollow metal tube design, 100% copper coil, C&U bearing, rigorous assembly process, good heat dissipation, low- temperature, low working current, sufficient to ensure sufficient Output Power.



The hollow metal tube design greatly optimizes the mechanical audit, saves the design space and production cost, has a long service life, high- efficiency, energy-saving, low noise, slight vibration, ample starting torque, high reliability, compact structure, and easy operation. In addition, it has a vast field and can be used as a water pump, ventilation equipment, supercharger equipment, cleaning equipment, etc.





Advantage:



1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.


2, the use of high-quality bearings, rigorous assembly process to achieve low noise operation.


3, tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.





Operating conditions:



Ambient temperature -15℃≤θ≤60℃
Altitude ≤1000m
Protection class IP54
Insulation class class F
Rated voltage 220V, other voltage on request
Cooling type IC 0141
Duty Continuous(S1)
Rated frequency 50HZ, other frequency on request



Application

hollow shaft electric motor



Production line

7.5kw 4 Pole 3000rpm Asynchronous Induction Motor IP54/IP55 With Hollow Shaft 1

Hollow Shaft Motor



Production data

Single-Phase 2 Poles 3000Rpm 50Hz

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3





Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22



Three-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400

34





Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Three-Phase 6 Poles 1000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 0.80 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23



7.5kw 4 Pole 3000rpm Asynchronous Induction Motor IP54/IP55 With Hollow Shaft 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH 7.5kw 4 Pole 3000rpm Asynchronous Induction Motor IP54/IP55 With Hollow Shaft 8
water pump water pump mechnical seal

7.5kw 4 Pole 3000rpm Asynchronous Induction Motor IP54/IP55 With Hollow Shaft 12



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
