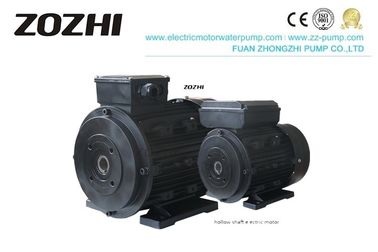

Horizontal Hollow Shaft Motor 7.5KW 400V IE 2 132S1-2 For High Pressure Pump

132S1-2 7.5KW hollow shaft horizontal motor for high-pressure pump 400V

Hollow Shaft Motor

Three-phase squirrel-cage A.C. asynchronous aluminum housing hollow shaft motor, 100% copper coil, high-quality bearing, high precision rotor. The current is small, the power loss is slight, the heat dissipation is good, and the energy is high. Hollow shaft motors have a wide range of applications and can be used as pumps, ventilation equipment, booster equipment, small hydroelectric generators, propellers, etc.

 Phase: three-phase

 Model:132S1-4

 Power:47.5KW

 Frame:132

 No of poles: 2

 Frequency: 60Hz

 Brand: ZOZHI

Application

100132S2-4 Hollow shaft motor With N.M.T. pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: misting system, motor vehicle cleaning system, or pressure washer system

Advantage:

1. high-quality materials, high output power, small working current, low temperature, good heat dissipation, and high efficiency.

2. high-quality bearings, rigorous assembly process, low noise.

3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.

Frame

A three-phase hollow shaft motor is supplied in a robust, rugged aluminum frame with integral feet.

Ratings

all hollow shaft motor standard three-phase motors are continuous rated to comply with performance standards

Voltage and Frequency

three-phase hollow shaft motor supply volts400 ±5% 3 phase 60Hz ±3% we are also capable of manufacturing three-phase motor in different volts and frequency like220,380,460

Protection

hollow shaft motor is IP-44 protection as defined in IS:4691 Motors can be supplied with IP-54 and IP-55 on request

Insulation

Hollow shaft motors supply with class B&F insulation as a standard feature. Also, supply H on request of the customer.

Terminal Box

all three-phase motor supply with a terminal box on top position for Foot mounted. Other position boxes like left or right supply on customer request.

Shaft

Hollow shaft motor shaft made from high carbon steel pipe to provide exceptional strength&rigidity to minimize deflection. we can also supply the motor with stainless steel hollow shaft

Rotor

All hollow shaft motor rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. It makes low motor amplitudes of vibration & noise.

Bearing&Lubrication:

hollow shaft motor bearings are adequately lubricated with lithium-based high temp up to 150 deg. all the motors are supplied with a C3 ball bearing & fully charged with lithium base grease at the time of assembly

Enclosure

Hollow shaft motor supply with enclosure T.E.F.C. (totally Enclosed Fan Cooling)

Thermal overload protection

we can also supply motor on demand of the customer. it can provide extra motor safety from overlord protection

Earthing terminals:

three-phase hollow shaft motor provided with a minimum of two earthing terminals. one in the terminal box and the other on Foot

Paints

All hollow shaft motor is painted with semi-glossy synthetic enamel paint. however, sp. paint is available on request

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request

Production data

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

F.A.Q.:

1. Q: What's the M.O.Q.?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do O.E.M. for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
