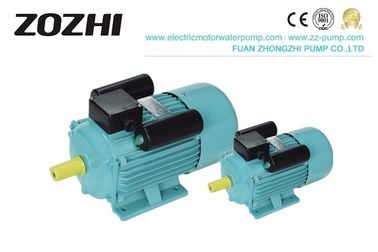

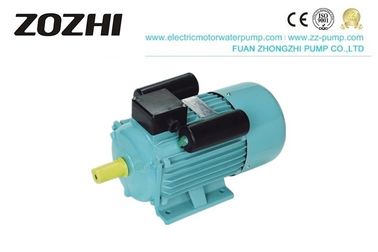

Double Capacitor Single Phase Asynchronous Motor YL802-4 0.75kw IP54 50Hz

  • Double Capacitor Single Phase Asynchronous Motor YL802-4 0.75kw IP54 50Hz
  • Double Capacitor Single Phase Asynchronous Motor YL802-4 0.75kw IP54 50Hz
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YL802-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 0.75KW Pole 4
Protection Class IP54 Frequency 50Hz
Insulation Class H
Highlight

Double Capacitor Single Phase Asynchronous Motor

,

IP54 50Hz Single Phase Asynchronous Motor

,

0.75kw Double Capacitor Induction Motor
Leave a Message
Product Description

Double Capacitor Start-Up Single Phase Asynchronous Motor YL802-4 0.75kw IP54 50Hz

Single Phase Induction Motor

YL Series single-phase induction motor Description.



YC series Single-phase double-capacitor start-up asynchronous motor, fully enclosed fan cooling operation, rated output power range of 0.37-3.7KW, made of high quality cast iron, optimized structure to ensure structural rigidity and strength requirements. The stator core and the rotor core are made of silicon steel plates. The surface insulation is good. The low-loss and high-quality insulation material combine the perfect insulation system to make the insulation completely free of gaps. As a result, the winding ends have high rigidity and can withstand switching and reversing strength. In addition, the grade insulation gives the motor higher thermal stability and longer thermal insulation. Life.





YL Series single-phase induction motor Application.

YC series heavy-duty single-phase capacitor start induction motor has the advantages of large starting torque, stable operation, low -temperature rise, low noise, strong overload capability. Suitable for driving small workshops, small machinery, medical equipment, household appliances, fans, machinery, instruments, chemical instruments, textiles, agricultural machinery, etc.



electricmotor



YL Series single-phase induction motor Data.

Model Power (V)   Speed Eff. P.F. Tstart/Tn Ist/In Tmax/Tn N.W.(kg)
HP KW (A) (r.p.m) (%)
YL711-2 1/2 0.37 220 2.73 2880 67 0.92 1.8 16 1.8 8
YL712-2 3/4 0.55 220 3.88 2880 70 0.92 1.8 21 1.8 9
YL801-2 1 0.75 220 5.15 2800 72 0.92 1.8 29 1.8 11
YL802-2 1.5 1.1 220 7.02 2800 75 0.95 1.8 40 1.8 12
YL90S-2 2 1.5 220 9.44 2820 76 0.95 1.7 55 1.8 13
YL90L-2 3 2.2 220 13.7 2820 77 0.95 1.7 80 1.8 17
YL711-4 1/3 0.25 220 1.99 1400 62 0.92 1.8 12 1.8 8
YL712-4 1/2 0.37 220 2.81 1400 65 0.92 1.8 16 1.8 9
YL801-4 3/4 0.55 220 4 1400 68 0.92 1.8 21 1.8 11
YL802-4 1 0.75 220 5.22 1400 71 0.92 1.8 29 1.8 12
YL90S-4 1.5 1.1 220 7.21 1420 73 0.95 1.7 40 1.8 13
YL90L-4 2 1.5 220 9.57 1420 75 0.95 1.7 55 1.8 17
YL100L1-4 3 2.2 220 13.9 1420 76 0.95 1.7 80 1.8 26
YL100L2-4 4 3 220 18.6 1420 77 0.95 1.7 110 1.8 28
YL112M-4 3 2.2 220 13.9 1440 76 0.95 1.7 80 1.8 31
YL112M1-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 34
YL112M2-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 38
YL132SA-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 55
YL132SB-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 60





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
