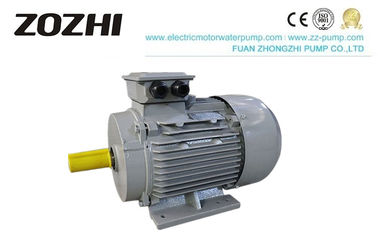

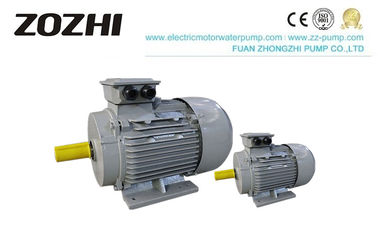

Cast Iron Three Phase Induction Motor Y2 Series 2 Pole 0.75-315Kw IE2 Durable

  • Cast Iron Three Phase Induction Motor Y2 Series 2 Pole 0.75-315Kw IE2 Durable
  • Cast Iron Three Phase Induction Motor Y2 Series 2 Pole 0.75-315Kw IE2 Durable
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2 SERIES
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Rating 0.75-315KW Number Of Poles 2
Enclosure IC411 Type Asynchronous Motor
Insulation Class B / F / H Product Name 3 Phase Induction Motor
Application General Driving
Highlight

3 phase asynchronous motor

,

squirrel cage electric motor
Leave a Message
Product Description

IE2 Three-Phase High-Efficiency Cast Iron Induction Motor Y2 Series 2Pole 0.75-315Kw

3 Phase Induction Motor



PRODUCT DESCRIPTIONS



Y2 (IE2) series three-phase high-efficiency cast iron induction motor. The structure is optimized to ensure structural rigidity and strength. The stator core and rotor core are made of silicon steel plates. The surface insulation is good, and the low-quality insulation materials are combined. The perfect insulation system makes the insulation completely free of gaps. The winding ends have high rigidity and can withstand the switching and reversing strength. The F-class insulation gives the motor higher thermal stability and more extended thermal insulation performance. It concentrates on the advantages of ample starting torque, stable operation, low-temperature rise, low noise, and good overload performance.

IE2 motor characteristics
(1) High efficiency, IE2 is 3% higher than IE1
(2) More high-quality materials are required. IE2 costs 25% to 30% more than IE1 motors
(3) Due to the lower operating temperature, the motor has a longer life and can reduce maintenance costs.
(4) The starting current is larger under typical design conditions.
(5) The rotor inertia is large.
(6) High speed at rated load, small slip rate



APPLICATIONS



These high-efficiency motors are widely used in small machinery, medical equipment, household appliances, fans, machinery, instrumentation, chemical instrumentation, textiles, agricultural machinery, and so on.

electricmotor

electricmotor




THREE-PHASE INDUCTION MOTOR FEATURES



1. Consistent performance



2. Low maintenance



3. Suitable for mounting in any position



4. Easy to operate




OPERATING LIMITS



1. Priming voltage: 380V or any voltage between 220-760V


2. Sea level: not exceed 1000m. If over, the power will be down


3. Environment temperature: -15℃ ≦ 0 ≦ 40℃


4. Protection: IP44 / IP54 / IP55


5. Insulation Class: B / F / H

​



PERFORMANCE CHART

NO. Type Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise LwdB Voltage
kW r/min A % cosφ (A) V
1 IE2-801-2 0.75 2850 1.7 77.4 0.82 2.3 6.8 2.3 62 400
2 IE2-802-2 1.1 2870 2.4 79.6 0.83 2.3 7.1 2.3 62 400
3 IE2-90S-2 1.5 2880 3.2 81.3 0.84 2.3 7.3 2.3 67 400
4 IE2-90L-2 2.2 2880 4.5 83.2 0.85 2.3 7.6 2.3 67 400
5 IE2-100L1-2 3 2880 5.9 84.6 0.87 2.2 7.8 2.3 74 400
6 IE2-112M-2 4 2900 7.6 85.8 0.88 2.3 8.1 2.3 77 400
7 IE2-132S1-2 5.5 2910 10.4 87 0.88 2.2 8.2 2.3 79 400
8 IE2-132S2-2 7.5 2910 13.8 88.1 0.89 2.2 7.8 2.3 79 400
9 IE2-160M1-2 11 2940 20 89.4 0.89 2.2 7.9 2.3 81 400
10 IE2-160M2-2 15 2940 26.9 90.3 0.89 2.2 8 2.3 81 400
11 IE2-160L-2 18.5 2940 33 90.9 0.89 2.2 8 2.3 81 400
12 IE2-180M-2 22 2950 39.1 91.3 0.89 2.2 8.1 2.3 83 400
13 IE2-200L1-2 30 2960 52.9 92 0.89 2 7.5 2.3 84 400
14 IE2-200L2-2 37 2960 64.9 92.5 0.89 2 7.5 2.3 84 400
15 IE2-225M-2 45 2960 78.6 92.9 0.89 2.2 7.5 2.3 86 400
16 IE2-250M-2 55 2970 96 93.2 0.89 2.2 7.6 2.3 89 400
17 IE2-280S-2 75 2975 130 93.8 0.89 2 6.9 2.3 91 400
18 IE2-280M-2 90 2975 155 94.1 0.89 2 6.9 2.3 91 400
19 IE2-315S-2 110 2975 187 94.3 0.9 2 7 2.2 92 400
20 IE2-315M-2 132 2975 224 94.6 0.9 2 7 2.2 92 400
21 IE2-315L1-2 160 2975 268 94.8 0.91 2 7.1 2.2 92 400
22 IE2-315L2-2 200 2975 334 95 0.91 2 7.1 2.2 92 400
23 IE2-355M-2 250 2980 418 95 0.91 1.6 7.1 2.2 100 400
24 IE2-355L-2 315 2980 526 95 0.91 1.6 7.2 2.2 100 400



3 Phase Induction Motor GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available. Feel free to contact us.


4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.




FAQ


1. Q: What's the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
