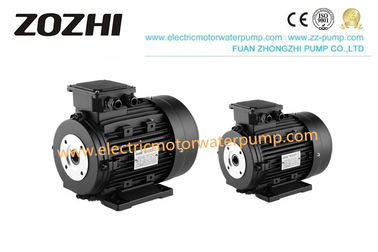

0.55Kw Hollow Shaft Hydraulic Motor Aluminum For RAVEL TYPE Clean Machine

  • 0.55Kw Hollow Shaft Hydraulic Motor Aluminum For RAVEL TYPE Clean Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 713-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.55KW Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
Highlight

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

Hollow Shaft Electric Motor 713-4 0.55Kw For RAVEL TYPE Clean Machine

Hollow Shaft Motor

Hollow Shaft Electric Motor Description



Model: 713-4 0.55KW 0.75HP 1350RPM

Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire
bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 220/380V Three Phase
Frequency 60HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm



The hollow shaft series motors comply with the relevant regulations of the International Electrotechnical Commission (IEC) and use high-quality raw materials for the latest overall design. The hollow shaft motor casing is made of aluminum, hollow metal tube design, 100% copper coil, C&U bearing, high-precision rotor, shaft extension through high-frequency quenching treatment, significantly improving mechanical strength, rigorous transfer technology, maintaining the standard motor all technical and maintenance advantages are following IEC standards.



Advantage:

1. High-quality materials, low power loss, low current, low-temperature rise, good heat dissipation, high efficiency, and energy-saving.
2, high-quality bearings, rigorous assembly process, low operating noise.
3. Tailored for professional equipment, the shaft extension is processed by high-frequency quenching, which significantly improves the mechanical strength and seamlessly connects with professional equipment to realize worry-free operation.



Hollow Shaft Electric Motor Application

Hollow shaft motors are widely used in cleaning, such as car washers, high-pressure pumps, clean machines.







Production line

0.55Kw Hollow Shaft Hydraulic Motor Aluminum For RAVEL TYPE Clean Machine 0



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34




0.55Kw Hollow Shaft Hydraulic Motor Aluminum For RAVEL TYPE Clean Machine 1



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH 0.55Kw Hollow Shaft Hydraulic Motor Aluminum For RAVEL TYPE Clean Machine 7
water pump water pump mechnical seal

0.55Kw Hollow Shaft Hydraulic Motor Aluminum For RAVEL TYPE Clean Machine 11

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
