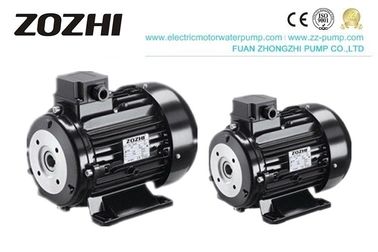

1.5KW 2HP Hollow Shaft Hydraulic Motor Induction Motor 90L1-4 For Cleaning Machine

  • 1.5KW 2HP Hollow Shaft Hydraulic Motor Induction Motor 90L1-4 For Cleaning Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS90L1-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pole 4 Rotation Direction Clockwise
Motor Bearing C&U (SKF For Choice) Efficiency IE1,IE2,IE3
Motor Housing Aluminum Insulation Class F Class
Product Name Hollow Shaft Motor
Highlight

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

90L1-4 1.5KW 2HP High-Quality Induction Motor With Hollow-Shaft For Cleaning Machine

Hollow Shaft Motor

Hollow Shaft Electric Motor Description



Hollow shaft motors are following customer requirements or application requirements. The aluminum housing frame is made of a high carbon steel pipe with excellent strength and stiffness.



Mode: 90L1-4                            Horsepower: 2

RPM:1400                                 Shaft Size:24mm Hollow

Voltage: 400V                            Hertz: 50

Motor housing: Aluminum         Bearing: C&U

Shaft: C#45                               Insulation: Class F

Protection: IP55                        Installation: B3 Hollow shaft

Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire



1. high-quality materials, sufficient output power, small working current, low temperature, good heat dissipation, and high efficiency.
2. high-quality bearings, rigorous assembly process, low noise.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.







Hollow Shaft Electric Motor Application




1. 90L1-4 Hollow shaft motor With XLTI pump

Environment: pressure ≤ 300bar

Water temperature ≤ 65 °C

Operating environment: automatic gantry-style car washes, misting systems



1.5KW 2HP Hollow Shaft Hydraulic Motor Induction Motor 90L1-4 For Cleaning Machine 0





Production line

1.5KW 2HP Hollow Shaft Hydraulic Motor Induction Motor 90L1-4 For Cleaning Machine 1



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



1.5KW 2HP Hollow Shaft Hydraulic Motor Induction Motor 90L1-4 For Cleaning Machine 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH 1.5KW 2HP Hollow Shaft Hydraulic Motor Induction Motor 90L1-4 For Cleaning Machine 8
water pump water pump mechnical seal

1.5KW 2HP Hollow Shaft Hydraulic Motor Induction Motor 90L1-4 For Cleaning Machine 12

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
