0.5HP 0.75HP 1HP Vortex Electric Water Pump QB60 QB70 QB80 For Living / Garden
| Place of Origin | China |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE/SGS/ISO |
| Model Number | QB 60 |
| Minimum Order Quantity | 1pc |
| Price | negotiated |
| Packaging Details | Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 30000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Peripheral Water Pump | Application | Boosting |
|---|---|---|---|
| Power | 0.5HP 0.75HP 1HP | Flow Max | 35L/Min |
| Head Max | 35M | Suction Max | 9M |
| Warranty | 12 Months | Speed | 2850RPM |
| Highlight | peripheral impeller pump,domestic water pump |
||
Product Description

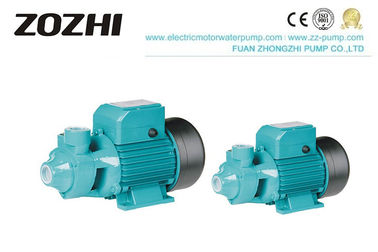

0.5HP 0.75HP 1HP Vortex Electric Water Pump QB60 QB70 QB80 For Living / Garden
Peripheral Water Pump
Peripheral Water Pump Description
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made
They are easy to use and are economical. Therefore, they are ideal for domestic use and, particularly, for distributing water in combination with small pressure sets and irrigation gardens and allotments.
The pump should be installed in an enclosed environment or at least sheltered from inclement weather.
Peripheral Water Pump Application
QB Series vortex water pump is mainly used for drinking water and living water.
The living condition could be much improved
Tank
Domestic water supply
Water transfer
Peripheral Water Pump Data ( 220V/50HZ )
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| QB60 | 0.5 / 0.37 | 1.6 | 2850 | 35 | 35 | 9 | 1"x1" | 280x145x180 | 5.3 |
| QB70 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 330x180x220 | 9.5 |
| QB80 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1½ "x1½" | 330x180x220 | 10 |
| QB90 | 1.5 / 1.1 | 6.2 | 2850 | 90 | 60 | 9 | 1½ "x1½" | 425x200x220 | 22 |
Other voltages and frequencies available on request
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
| Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
|
|
|
|
|
|
|
|
|
Peripheral Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
