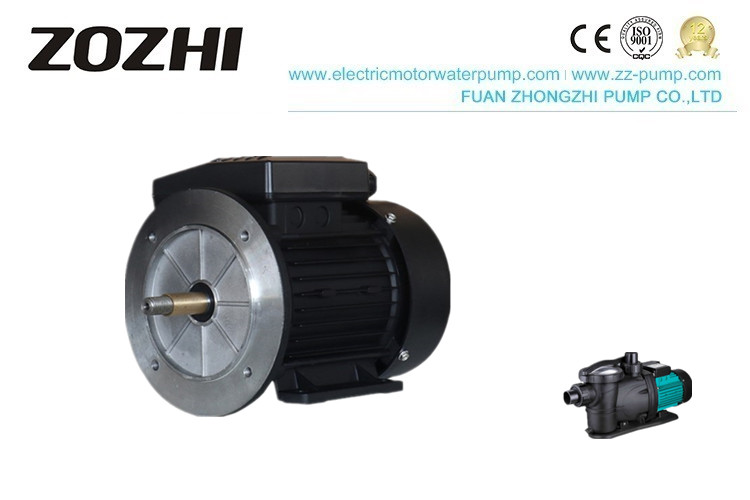

IP55 Single Phase 2HP IE2 Pool Pump Motor 1.5kw 2 Pole
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pool Pump Motor | Application | Swimming Pool Pump |
|---|---|---|---|
| Output | 2HP/1.5KW | Pole | 2 |
| Efficiency | IE1,IE2 | Performance | High Reliability |
| Capacitor Type | Capacitor Running | Phase | Single Phase |
| Housing | Aluminium | ||
| Highlight | IE2 Pool Pump Motor,Pool Pump Motor 1.5kw,2HP AC Asynchronous Motor |
||
Product Description
Swimming Pool Pump Motor 2HP 1.5kw AC Asynchronous Motor IP54 IP55 Induction
Pool Pump Motor Description
MYT series single-phase asynchronous power is a fully enclosed fan-cooled squirrel-cage AC asynchronous motor. It is a product designed by our company. The feet are detachable and can be changed into various installation forms. It is easy to use, beautiful in appearance, protection grade IP54, IP55, F insulation, and reaches the minimum domestic efficiency. In line with the European EFF2 standard, it can also be upgraded to the European EFF1 and the United States' high-efficiency standards.
MYT series motors are characterized by high efficiency, energy saving, high starting torque, good performance, low noise, low vibration, high reliability, power level, and installation dimensions following IEC standards and easy maintenance.
Pool Pump Motor Operating Conditions:
1. Ambient temperature: -15℃≦0≦40℃
2. Cooling method: IC0141
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
Production data
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | Start/Tn | Tmax/Tn | |
| HP | KW | |||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |
General data
| Frame size | 80 |
| Housing material | Aluminum |
| Install model | According to the standard |
| Type of feet | Removable feet |
| Net weight | 8.7kg |
| Insulation class | FH(Standard)(Optional) |
| Protection degree | IP 55IP 56(Standard)(Optional) |
| Thermal protection | WithoutCustomizable(Standard)(Optional) |
| Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
| Service duty | S1 |
| Vibration level | A |
| Balance | Half-key balanced |
| Cable glands | 1 - M20 × 1.5 |
| Cooling | IC 411 |
| Painting color | RAL 7024Customizable(Standard)(Optional) |
| Regulations | IEC / DIN / ISO / VDE / EN |
| Standard | IEC 60034 |
| Environmental conditions | |
| Ambient temperature | From -20°C to +40°C |
| Maximum altitude | 1000 m above sea level |
Application
The Single-phase induction water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.
The electric motor so is careful while you use the pump that the water should not exceed.
Production line
|
|
|
|
|
|
|
|
|
Pool Pump Motor Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making. Also, we can advise how to make the products according to customers' target prices.
INFORMATION
Motor bearing heating analysis
(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.
(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.
(3) improper lubrication system leads to bearing heating due to poor lubrication
(4) bearing heating caused by motor temperature rise or operating environment temperature.
