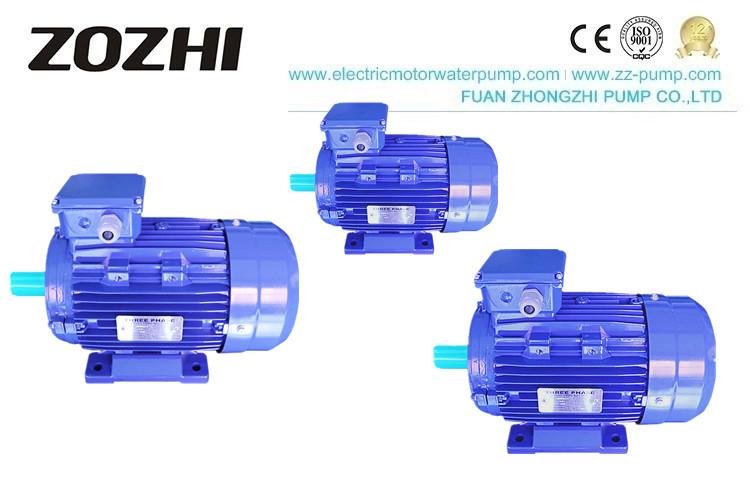

Premium Efficiency IE3 Three Phase Asynchronous Motor

  • Premium Efficiency IE3 Three Phase Asynchronous Motor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number IE3 MS90L-6
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE3 Motor Body Material Cast Iron
Output 1.1kw Pole 6
Protection Class IP54 Frequency 60Hz
Rated Voltage 400V Insulation Class B
Efficiency Class IE3 Output Speed 910
Highlight

1.1kw ac electric motor

,

ip54 3 phase electric motor
Leave a Message
Product Description

IE3 Premium Efficiency Three-Phase Asynchronous A.C. Electric Motor



IE3 Series Premium efficiency Three Phase Asynchronous Motor is designed for high efficiency, energy-saving, high-quality performance, slight vibration, low noise, long life, high reliability, easy maintenance, ample start torque, etc. Frame size: H80 to H355, covering a wide power range from 0.75kw to 11kw. They are widely used in power transmissions, such as pumps, ventilators, tools, reducers, packing machines, and mining equipment. Therefore, they are the ideal hi-efficient energy-saving products.



Site conditions Motors are suitable for most working environments at a temperature from -15°C t0 +40°C and altitude below 1000 meters.
Insulation The motors'' insulation system is set to Class F(105K), examined by Class B(80K), which ensures the life span and reliability of the motors.
Motor protection Motors can be installed with PTC, PT100 used as winding and bearing temperature measurement on request.
Voltage and frequency The standard voltage and frequency is 380V 50HZ and can be set to any single voltage in the range of 200-660V at a frequency of 50 or 60HZ. The motors work well within variations of ±5% from the rated voltage.
Vibration Motors are designed for vibration class A; vibration class B is available on request.
Duty Continuous(S1)
Cooling and ventilation The standard cooling method is enclosed fan cooled(TEFC) by IC411 of IEC60034-6. Standard motors are equipped with auxiliary plastic fans.
Winding 100% Copper Wire
Protection class The standard protection class is IP54/IP55, which can be used in a humid and dusty environment. Higher degrees of protection are available.
Quality assurance From the first line of production designing till the finishing procedure, obey ISO9001 documented quality system.



E3 Electric Motor Application

As a drive of various kinds of machines, they are widely applied in industries including mechanical and electro-mechanical, food, textile, etc.



IE3 MOTOR

IE3 Motor Features:



IE3 MOTOR



IE3 Electric Motor Data

Model Power (V) (A)

Spee

d r/min

 Eff. (%) P.F. Tstart/Tn Ist/In Tmax/Tn N.W. (kg)
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0 2.3 9.5
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5 2.3 11
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5 2.4 15
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5 2.4 18
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0 2.4 25
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5 2.4 28.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5 2.4 41
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5 2.4 46.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5 2.4 81
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5 2.4 93
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5 2.4 104
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0 2.4 12
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5 2.4 16
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0 2.4 20
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0 2.4 26
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0 2.4 30
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5 2.4 38
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5 2.4 46
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5 2.4 54
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0 2.4 88
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0 2.4 103
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0 2.3 15
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0 2.3 20
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0 2.3 25
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0 2.3 30
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5 2.3 38.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0 2.3 47.5
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0 2.3 58
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0 2.3 83
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0 2.3 99



I

Premium Efficiency IE3 Three Phase Asynchronous Motor 2

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH PRESSURE SWITCH
water pump water pump mechnical seal



IE3 Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



IE3 Motor Our Service:

1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3. we test the material before production and three to four times when producing to ensure the goods are of good quality also. We have according to request
4. we can be your OEM manufacturer with your authorization of the brand.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
