DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump

  • DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump
  • DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump
Place of Origin FUAN CHINA
Brand Name zozhi
Certification CE,ISO
Model Number DB-370
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO DB-330 Power 0.37kw/0.55hp
Q.Max 35 H.Max 35
Suct.Max 9m Rpm 2850
Inlet/Outlet 1"x1" Insulation Class B/F
Product Name Peripheral Water Pump
Highlight

2850 RPM Self Priming Peripheral Pump

,

0.37kw Self Priming Peripheral Pump

,

0.55hp Electric Peripheral Pump
Leave a Message
Product Description

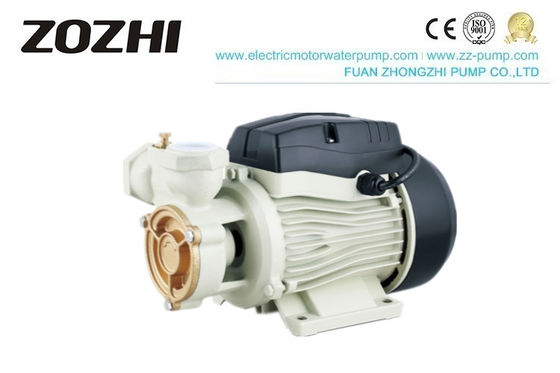

DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump

Peripheral Water Pump

TECHNICAL DATA(220-240V/50Hz)
Power: 0.37KW/ 055. HP
H. MAX: 30M
Q. MAX: 35L/min
SUCT. MAX: 9M
DNA: 1"
DNM: 1"



APPLICATION
1. The pump has a compact size and is simple to use.
2. Heavy-duty continuous work.
3. Ambient temperature up to 40º C.
4. The thermal protector is installed if required.
5. The shaft is 45# steel or stainless steel and not easy to rust.
6. 220-240V 50Hz power, which is safer for your use.
7. The stator is 100% copper wire with high quality.

OPERATING CONDITION
1. Liquid temperature up to 60
2. Ambient temper up to 40
3. Total suction lift to 9m
4. Continuous duty

CONSTRUCT
PUMP
Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Carbon/ceramic/Stainless Steel



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

MOTOR
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel/ Stainless steel
Insulation class: B and F
Protection class: IP44 or IP54
Cooling: Externally ventilation



DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump 0



DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump 1

Vortex Pump

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
