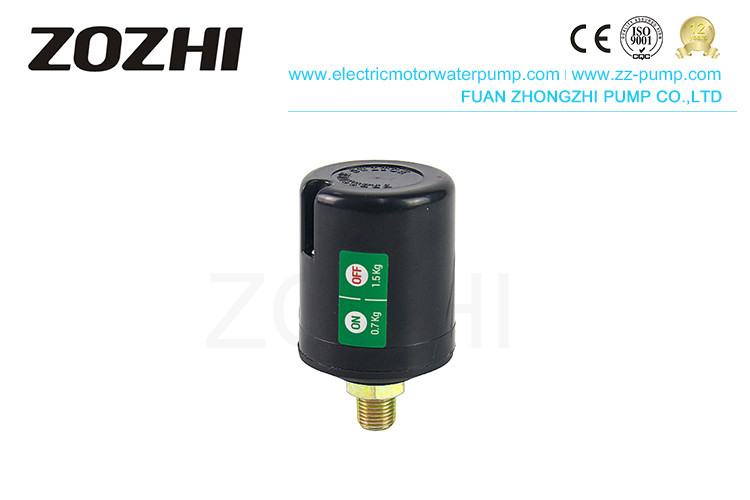

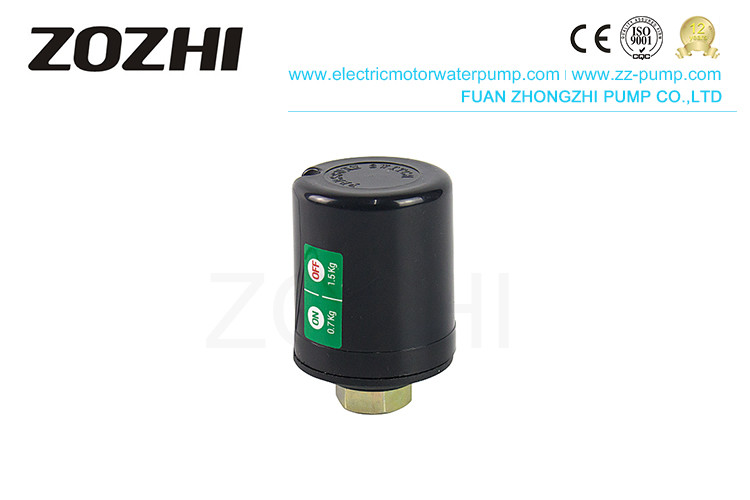

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump

  • 1/4" Male Thread 45PSI 10A Electric Water Transfer Pump
  • 1/4" Male Thread 45PSI 10A Electric Water Transfer Pump
  • 1/4" Male Thread 45PSI 10A Electric Water Transfer Pump
  • 1/4" Male Thread 45PSI 10A Electric Water Transfer Pump
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ZPS-2
Minimum Order Quantity 100pcs
Price USD$2
Packaging Details Packed in cartons
Delivery Time 7 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Electric Motor Water Pump Rated Voltage 230V; 110V
Frequency 50/60HZ Rated Current 5A;10A
Min.cut-in 12PSI Min.cut-out 45PSI
Pressure Range 1.1-1.8Bar Bases Zin Alloy
Screw Type Female/Male Size 1/4"; 3/8"
Highlight

10A Electric Water Transfer Pump

,

45PSI Electric Water Transfer Pump

,

1/4" Male Thread Water Pump
Leave a Message
Product Description

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump





Electric Motor Water Pump Maximum current: 10A / 5A

Electric Motor Water Pump Pressure setting: 1.1-1.8 Bar

Electric Motor Water Pump Pressure range: 0.8-3.5 bar

Connection thread: ZG1/4 '' G1/4 '' G3/8 "

Interface thread:

1 / 4 '' Male Thread (1.1-1.8) 13 mm
1 / 4 '' Inner Thread (1.1-1.8) 12 mm
3 / 8 " Inner Thread (1.1-1.8) 15.5 mm



Low pressure 1.1kg/cm², high point pressure 1.8kg/cm²

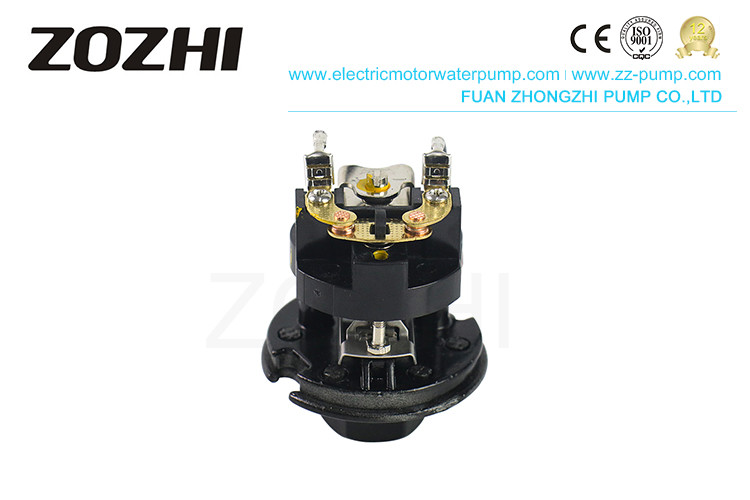

The initial state of the pressure switch is "on," and only to reach a high point (1.8kg/cm² or more), pressure will be a disconnect.
When the pressure in the line is released to the switch, low pressure (1.1kg / cm² below) will be reconnected. The pressure reaches a high point (1.8 kg/cm ² above), the pressure will be a disconnect, so repeat the work cycle.



Model
ZPS-2
Dimension
52*26.5*19CM
Quantity
100PCS/CTN
N.W(kg)
17 KGS
G.W(kg)
19 KGS
Model
Pressure Range
Screw Type
Base Material
ZPS-2A-0.8
0.8-1.5kg
Female 3/8"
Plastic
ZPS-2B-0.8
0.8-1.5kg
Female 3/8"
Zin alloy
ZPS-2C-0.8
0.8-1.5kg
Male 1/4"
Plastic
ZPS-2A-1.1
1.1-1.8kg
Female 3/8"
Zin alloy
ZPS-2B-1.1
1.1-1.8kg
Female 3/8"
Plastic
ZPS-2C-1.1
1.1-1.8kg
Male 1/4"
Zin alloy
ZPS-2A-1.3
1.3-2.3kg
Female 3/8"
Plastic
ZPS-2B-1.3
1.3-2.3kg
Female 3/8"
Zin alloy
ZPS-2C-1.3
1.3-2.3kg
Male 1/4"
Plastic
ZPS-2A-2.0
2.0-3.0kg
Female 3/8"
Zin alloy
ZPS-2B-2.0
2.0-3.0kg
Female 3/8"
Plastic
ZPS-2C-2.0
2.0-3.0kg
Male 1/4"
Zin alloy
ZPS-2A-2.5
2.5-3.5kg
Female 3/8"
Plastic
ZPS-2B-2.5
2.5-3.5kg
Female 3/8"
Zin alloy
ZPS-2C-2.5
2.5-3.5kg
Male 1/4"
Plastic
ZPS-2A-3.0
3.0-4.0kg
Female 3/8"
Zin alloy
ZPS-2B-3.0
3.0-4.0kg
Female 3/8"
Plastic
ZPS-2C-3.0
3.0-4.0kg
Male 1/4"
Zin alloy



1/4" Male Thread 45PSI 10A Electric Water Transfer Pump 0

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump 1

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump 2

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump 3

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump 4

1/4" Male Thread 45PSI 10A Electric Water Transfer Pump 5



Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
