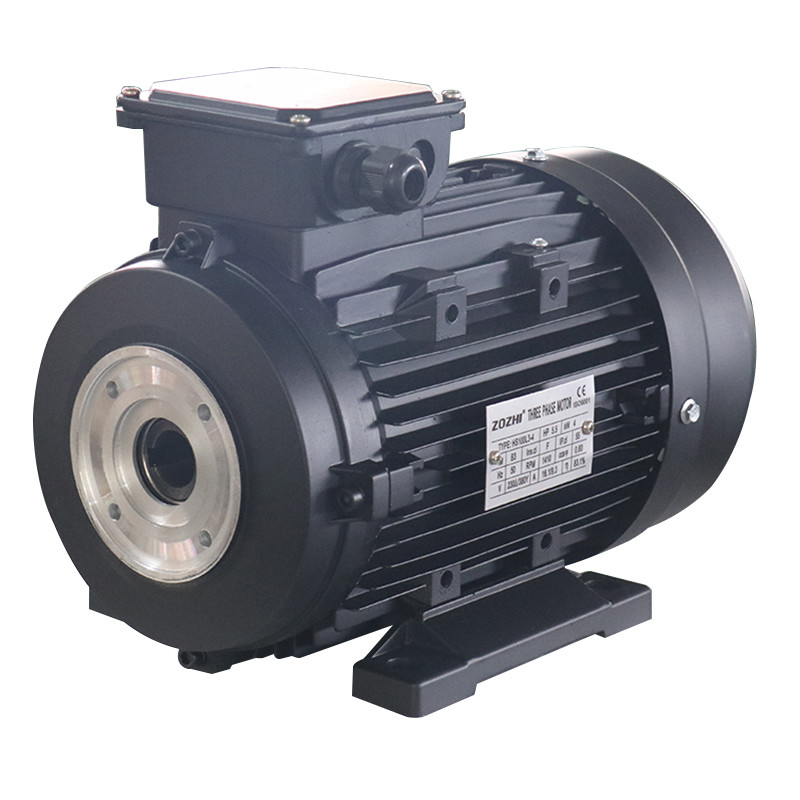

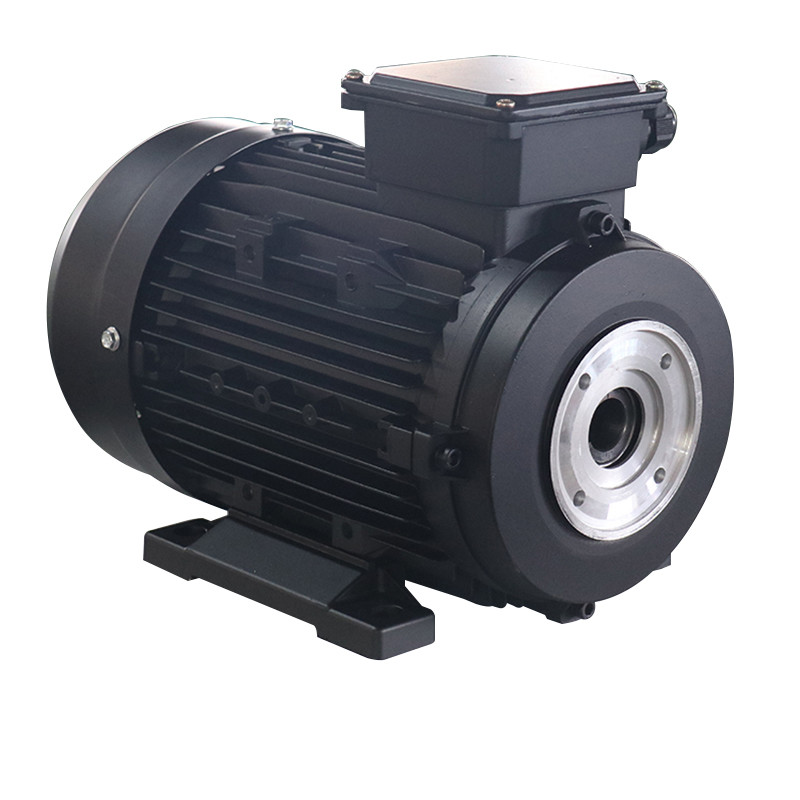

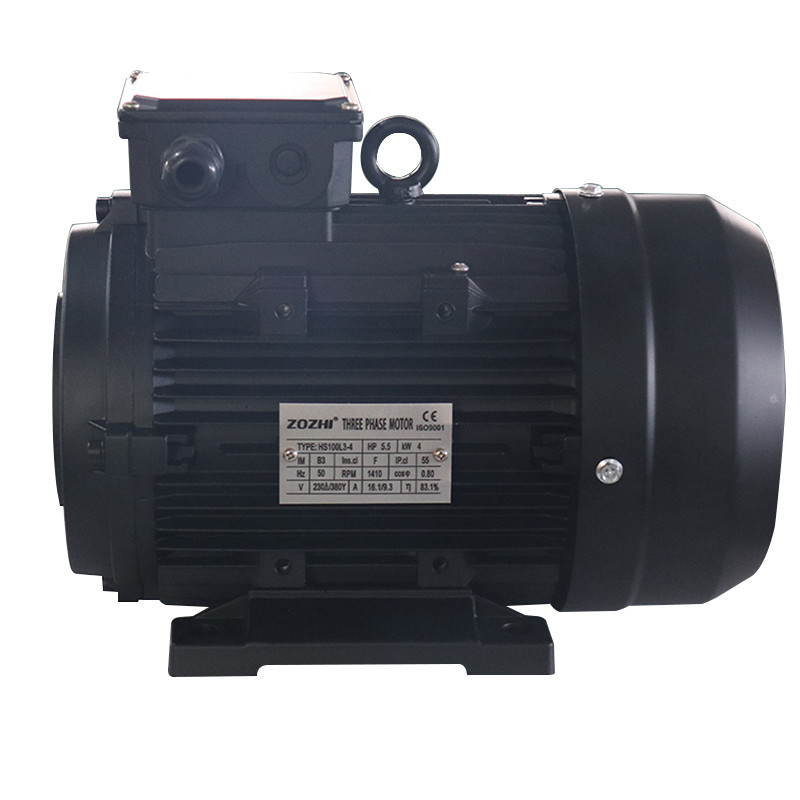

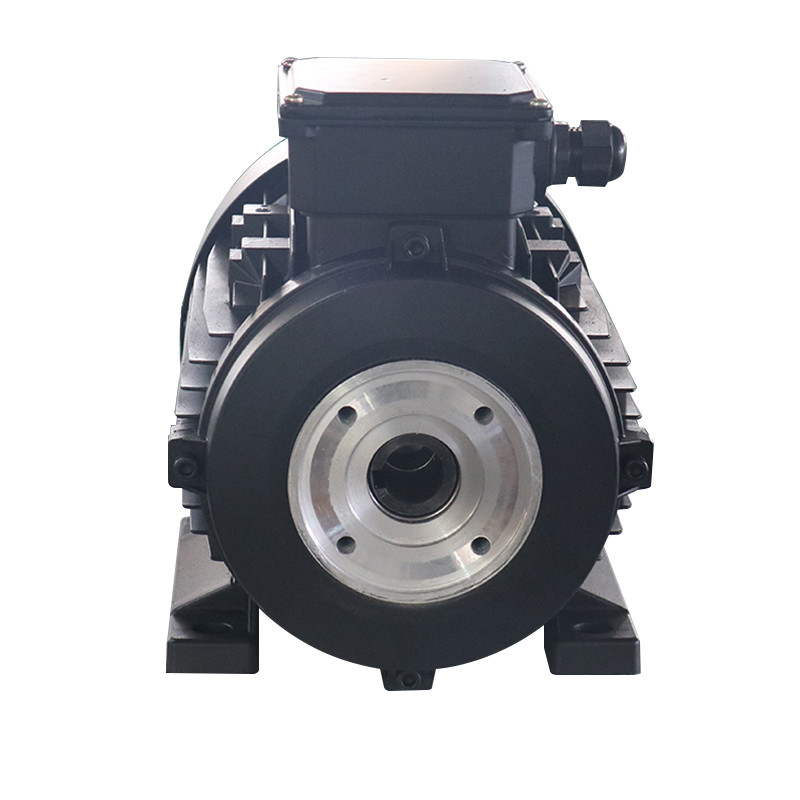

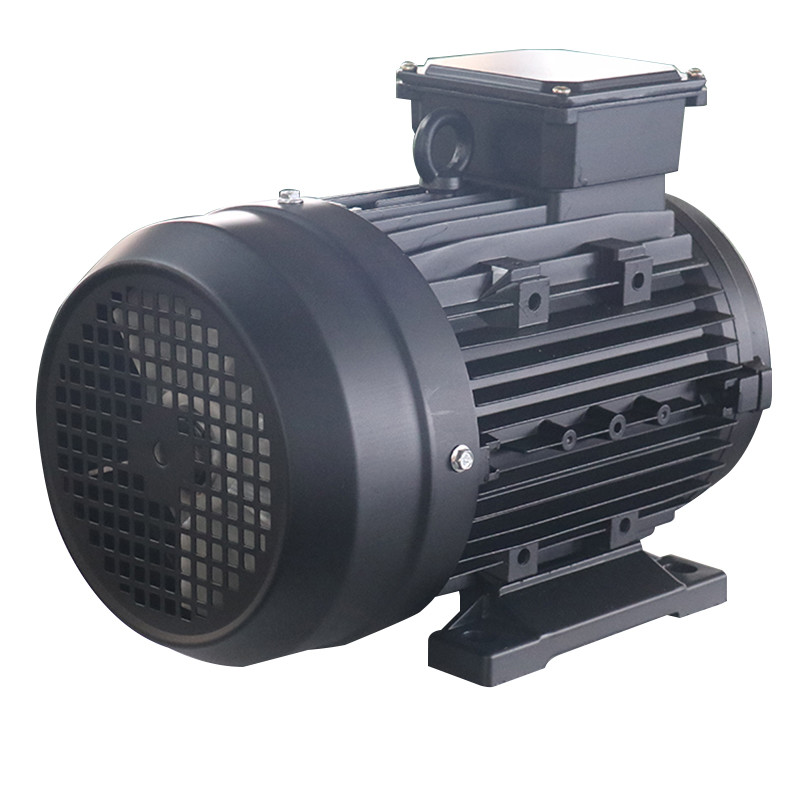

24mm 5.5kw Hollow Shaft Motor 380v 50hz Clockwise Rotation Fan Cooled

24mm 5.5kw hollow shaft motor for sale 380v 50hz

Hollow shaft motor is an aluminum shell fully enclosed fan-cooled squirrel-cage A.C. asynchronous motor, hollow metal tube design, with internal joints, designed with new technology, 100% copper coil, high-quality bearing, high precision rotor, shaft lift After high-frequency quenching treatment, it dramatically improves the mechanical strength, ensures sufficient output power, low working current, low-temperature rise, good heat dissipation, high efficiency and energy-saving, compact structure, easy operation, safe and reliable operation, and is an ideal choice for cleaning equipment.

AC/DC: Three-phase, Single-phase

Voltage: 400V

Protection Class: IP54

Configuration: Hollow-shaft, aluminum

Number of poles: 2-pole, 4-pole

Cooling mechanism: Self-ventilated

Applications: for agribusiness, for pumps, for washdown applications, for offshore applications

Power: Max: 11kw

             Min: 1.85kw

Application

hollow shaft motor is widely used in below:

In the industrial and chemical industries, it is used as mechanical processing, bridge engineering equipment, and unique parts cleaning equipment;

In the food industry, cleaning equipment for equipment cleaning and material agitation;

In the automotive industry, it can be a cleaning device for car cleaning tools;

In life, it acts as a dredge for constructing the residential community and a cleaning device for the sanitation road.

Advantage:

1. Use high-quality magnetic materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.

2. high-quality bearings and rigid assembly to achieve low noise operation.

3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment significantly improves mechanical strength, seamless connection with gear, and worry-free operation.

Protection

hollow shaft motor is IP-44 protection as defined in IS:4691 Motors can be supplied with IP-54 and IP-55 on request

Insulation

Hollow shaft motors supply with class B&F insulation as a standard feature.

Terminal Box

all three-phase motor supply with a terminal box on top for Foot mounted. Other position boxes like left or right supply on customer request.

Shaft

Hollow shaft motor shaft made from high carbon steel pipe to provide exceptional strength&rigidity to minimize deflection. we can also supply the motor with stainless steel hollow shaft

Rotor

All hollow shaft motor rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Thus, it makes low motor amplitudes of vibration & noise.

Bearing&Lubrication:

hollow shaft motor bearings are adequately lubricated with lithium-based high temp up to 150 deg. all the motors are supplied with a C3 ball bearing & fully charged with lithium base grease at the time of assembly

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request

Production line

Production data

Hollow Shaft Motor

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods are produced by ourselves. We provide one-stop services from designing and printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C.
