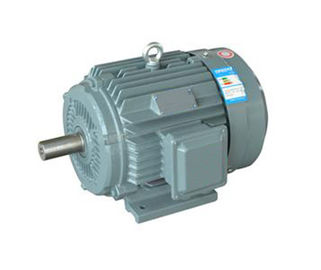

General Driving 3 Phase Asynchronous Induction Motor For Pump 0.5HP - 430HP
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO CE CCC |
Model Number | Y-355L-4 |
Minimum Order Quantity | 1pc |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden cases |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 10000pcs/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 3 Phase Induction Motor | Application | General Driving |
---|---|---|---|
Power | 430HP / 315KW | Pole | 4 |
Phase | 3 Phase | Insulation Classtion Class | B/F/H |
Efficiency | IE1,IE2,IE3 | Housing Material | Cast Iron |
Highlight | General Driving Asynchronous Induction Motor,430HP Asynchronous Induction Motor,315KW 3 Phase Asynchronous Motor |
Less Consumption 3 Phase Asynchronous Induction Motor For Pump 0.5HP - 430HP
ADVANTAGE:
1. Outstanding performance
2. High efficiency
3. Energy-saving
4. High starting torque
5. Low noise
6. Little vibration
7. Reliable operation and easy maintenance
8. Widely power range from 0.5HP to 430HP
3 Phase Induction Motor APPLICATIONS:
Y series 3 phase induction motors apply to places where combustible, explosive, or corrosive gas doesn't exist and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, and food machines, etc.
3 Phase Induction Motor OPERATING LIMITS:
Operating Conditions
Ambient temperature: -is'c< e <40'C
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50Hz, 60Hz
Protection class: lp44. IP54. lP55
Insulation class: B. F. H
Altitude: not exceed 1000m
Cooling method: lc0141
Duty: S1(continuous)
Connection: Star-connection for up t0 3kw, delta-connection for 4kw and above
PERFORMANCE CHART:
Model |
Output HP KW |
Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
T start/ Tn |
Ist/ In |
Tmax/ Tn |
||||||||||||||
380V 5OHz Synchronous Speed 3000r/min (2 Poles) | ||||||||||||||||||||||||
Y-801-2 | 1 | 0.75 | 1.81 | 2830 | 75 | 0.84 | 73.8 | 0.79 | 2.2 | 6.5 | 2.3 | |||||||||||||
Y-802-2 | 1.5 | 1.1 | 2.52 | 2830 | 77 | 0.86 | 76.5 | 0.81 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-90S-2 | 2 | 1.5 | 3.44 | 2840 | 78 | 0.85 | 77.5 | 0.8 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-90L-2 | 3 | 2.2 | 4.83 | 2840 | 80.5 | 0.86 | 79.7 | 0.82 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-100L-2 | 4 | 3 | 6.39 | 2870 | 82 | 0.87 | 81.3 | 0.83 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-112M-2 | 5.5 | 4 | 8.17 | 2890 | 85.5 | 0.87 | 84.8 | 0.83 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-132S1-2 | 7.5 | 5.5 | 11.1 | 2900 | 85.5 | 0.88 | 84.9 | 0.86 | 2.0 | 7.0 | 2.3 | |||||||||||||
Y-132S2-2 | 10 | 7.5 | 15 | 2900 | 86.2 | 0.88 | 85.5 | 0.86 | 2.0 | 7.0 | 2.3 | |||||||||||||
Y-160M1-2 | 15 | 11 | 21.8 | 2930 | 87.2 | 0.88 | 86.5 | 0.86 | 2.0 | 7.0 | 2.3 | |||||||||||||
Y-160M2-2 | 20 | 15 | 29.4 | 2930 | 88.2 | 0.88 | 87.6 | 0.85 | 2.0 | 7.0 | 2.3 | |||||||||||||
Y-160L-2 | 25 | 16.5 | 35.5 | 2930 | 89 | 0.89 | 88.5 | 0.86 | 2.0 | 7.0 | 2.2 | |||||||||||||
Y-160M-2 | 30 | 22 | 42.2 | 2940 | 89 | 0.89 | 88.1 | 0.87 | 2.0 | 7.0 | 2.2 | |||||||||||||
Y-200L1-2 | 40 | 30 | 56.9 | 2950 | 90 | 0.89 | 88.7 | 0.86 | 2.0 | 7.0 | 2.2 | |||||||||||||
Y-200L2-2 | 50 | 37 | 69.8 | 2950 | 90.5 | 0.89 | 89.7 | 0.86 | 2.0 | 7.0 | 2.2 | |||||||||||||
Y-225M-2 | 60 | 45 | 83.9 | 2970 | 91.7 | 0.89 | 90.7 | 0.87 | 2.0 | 7.0 | 2.2 | |||||||||||||
Y-250M-2 | 75 | 55 | 103 | 2970 | 91.5 | 0.89 | 90.6 | 0.86 | 2.0 | 7.0 | 2.2 | |||||||||||||
Y280S-2 | 100 | 75 | 139 | 2970 | 92 | 0.89 | 91 | 0.86 | 2.0 | 7.0 | 2.2 | |||||||||||||
Y280M-2 | 125 | 90 | 166 | 2970 | 92.5 | 0.89 | 91.4 | 0.86 | 2.0 | 7.0 | 2.2 | |||||||||||||
Y315S-2 | 150 | 110 | 203 | 2980 | 92.5 | 0.89 | 91.4 | 0.86 | 1.8 | 6.8 | 2.2 | |||||||||||||
Y315M-2 | 180 | 132 | 242 | 2980 | 93 | 0.89 | 91.8 | 0.87 | 1.8 | 6.8 | 2.2 | |||||||||||||
Y315L1-2 | 220 | 160 | 292 | 2980 | 93.5 | 0.89 | 91.9 | 0.87 | 1.8 | 6.8 | 2.2 | |||||||||||||
Y315L2-2 | 270 | 200 | 365 | 2980 | 93.5 | 0.89 | 92.3 | 0.87 | 1.8 | 6.8 | 2.2 | |||||||||||||
Y355M-2 | 340 | 250 | 444 | 2980 | 94.5 | 0.9 | 93.3 | 0.88 | 1.6 | 7.0 | 2.2 | |||||||||||||
Y355L-2 | 430 | 315 | 556 | 2980 | 95 | 0.9 | 93.9 | 0.88 | 1.6 | 7.1 | 2.2 | |||||||||||||
380V 5OHz Synchronous Speed 1500r/min (4 Poles) | ||||||||||||||||||||||||
Y-801-4 | 0.75 | 0.55 | 1.51 | 1390 | 73 | 0.76 | 71.5 | 0.66 | 2.4 | 6.0 | 2.3 | |||||||||||||
Y-802-4 | 1 | 0.75 | 2.01 | 1390 | 74.5 | 0.76 | 73 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||||
Y-90S-4 | 1.5 | 1.1 | 2.75 | 1400 | 78 | 0.78 | 77 | 0.71 | 2.3 | 6.5 | 2.3 | |||||||||||||
Y-90L-4 | 2 | 1.5 | 3.65 | 1400 | 79 | 0.79 | 77.5 | 0.72 | 2.3 | 6.5 | 2.3 | |||||||||||||
Y-100L1-4 | 3 | 2.2 | 5.03 | 1430 | 81 | 0.82 | 80.3 | 0.74 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-100L2-4 | 4 | 3 | 6.82 | 1430 | 82.5 | 0.81 | 81.6 | 0.75 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-112M-4 | 5.5 | 4 | 8.77 | 1440 | 84.5 | 0.82 | 83.3 | 0.76 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-132S-4 | 7.5 | 5.5 | 11.69 | 1440 | 85.5 | 0.84 | 84.2 | 0.78 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-132M-4 | 10 | 7.5 | 15.4 | 1440 | 87 | 0.85 | 86.1 | 0.8 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-160M-4 | 15 | 11 | 22.6 | 1460 | 88 | 0.84 | 87.4 | 0.79 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-160L-4 | 20 | 15 | 30.3 | 1460 | 88.5 | 0.85 | 87.8 | 0.8 | 2.2 | 7.0 | 2.3 | |||||||||||||
Y-180M-4 | 25 | 18.5 | 35.9 | 1470 | 91 | 0.86 | 89.9 | 0.81 | 2.2 | 7.0 | 2.2 | |||||||||||||
Y-180L-4 | 30 | 22 | 42.5 | 1470 | 91.5 | 0.86 | 90.7 | 0.81 | 2 | 7.0 | 2.2 | |||||||||||||
Y-200L-4 | 40 | 30 | 56.8 | 1470 | 92.2 | 0.87 | 91.3 | 0.82 | 2 | 7.0 | 2.2 | |||||||||||||
Y-225S-4 | 50 | 37 | 70.4 | 1480 | 91.8 | 0.87 | 91.1 | 0.84 | 1.9 | 7.0 | 2.2 | |||||||||||||
Y-225M-4 | 60 | 45 | 84.2 | 1480 | 92.3 | 0.88 | 91.6 | 0.85 | 1.9 | 7.0 | 2.2 | |||||||||||||
Y-250M-4 | 75 | 55 | 103 | 1480 | 92.6 | 0.88 | 91.5 | 0.84 | 2 | 7.0 | 2.2 | |||||||||||||
Y280S-4 | 100 | 75 | 140 | 1480 | 92.7 | 0.89 | 91.7 | 0.84 | 1.9 | 7.0 | 2.2 | |||||||||||||
Y280M-4 | 125 | 90 | 164 | 1480 | 93.5 | 0.89 | 92.4 | 0.85 | 1.9 | 7.0 | 2.2 | |||||||||||||
Y315S-4 | 150 | 110 | 201 | 1480 | 93.5 | 0.89 | 92.5 | 0.86 | 1.8 | 6.8 | 2.2 | |||||||||||||
Y315M-4 | 180 | 132 | 240 | 1490 | 94 | 0.89 | 92.8 | 0.86 | 1.8 | 6.8 | 2.2 | |||||||||||||
Y315L1-4 | 220 | 160 | 289 | 1490 | 94.5 | 0.89 | 93.2 | 0.86 | 1.8 | 6.8 | 2.2 | |||||||||||||
Y315L2-4 | 270 | 200 | 361 | 1490 | 94.5 | 0.89 | 93.2 | 0.86 | 1.8 | 6.8 | 2.2 | |||||||||||||
Y355M-4 | 340 | 250 | 459 | 1485 | 94.7 | 0.87 | 93.6 | 0.87 | 1.6 | 6.8 | 2.2 | |||||||||||||
Y355L-4 | 430 | 315 | 576 | 1485 | 95.2 | 0.87 | 94.1 | 0.87 | 1.6 | 6.9 | 2.2 | |||||||||||||
380V 5OHz Synchronous Speed 1000r/min (6 Poles) | ||||||||||||||||||||||||
Y-801-6 | 0.5 | 0.37 | 1.2 | 900 | 70.5 | 0.68 | 68 | 0.59 | 2 | 5.5 | 2.2 | |||||||||||||
Y-802-6 | 0.75 | 0.55 | 1.45 | 900 | 71.5 | 0.68 | 68 | 0.59 | 2 | 5.5 | 2.2 | |||||||||||||
Y-90S-6 | 1 | 0.75 | 2.25 | 910 | 72.5 | 0.7 | 70.5 | 0.61 | 2 | 5.5 | 2.2 | |||||||||||||
Y-90L-6 | 1.5 | 1.1 | 3.16 | 910 | 73.5 | 0.72 | 72 | 0.61 | 2 | 5.5 | 2.2 | |||||||||||||
Y-100L-6 | 2 | 1.5 | 3.97 | 940 | 77.5 | 0.74 | 76.3 | 0.66 | 2 | 6.0 | 2.2 | |||||||||||||
Y-112M-6 | 3 | 2.2 | 5.61 | 940 | 80.5 | 0.74 | 79.2 | 0.66 | 2 | 6.0 | 2.2 | |||||||||||||
Y-132S-6 | 4 | 3 | 7.23 | 960 | 83 | 0.76 | 82 | 0.69 | 6.5 | 2.2 | ||||||||||||||
Y-132M1-6 | 5.5 | 4 | 9.4 | 960 | 84 | 0.77 | 83.1 | 0.7 | 2 | 6.5 | 2.2 | |||||||||||||
Y-132M2-6 | 7.5 | 5.5 | 12.6 | 960 | 85.3 | 0.79 | 84.4 | 0.72 | 2 | 6.5 | 2.2 | |||||||||||||
Y-160M-6 | 10 | 7.5 | 17 | 970 | 86 | 0.79 | 85.2 | 0.72 | 2 | 6.5 | 2 | |||||||||||||
Y-160L-6 | 15 | 11 | 24.6 | 970 | 87 | 0.79 | 86.6 | 0.72 | 2 | 6.5 | 2 | |||||||||||||
Y-180L-6 | 20 | 15 | 31.4 | 970 | 89.5 | 0.81 | 88.5 | 0.75 | 1.8 | 6.5 | 2 | |||||||||||||
Y-200L1-6 | 25 | 18.5 | 37.7 | 970 | 89.8 | 0.83 | 88.7 | 0.77 | 1.8 | 6.5 | 2 | |||||||||||||
Y-200L2-6 | 30 | 22 | 44.6 | 970 | 90.2 | 0.83 | 89.3 | 0.78 | 1.8 | 6.5 | 2 | |||||||||||||
Y-225M-6 | 40 | 30 | 59.5 | 980 | 90.2 | 0.85 | 89.6 | 0.8 | 1.7 | 6.5 | 2 | |||||||||||||
Y-250M-6 | 50 | 37 | 72 | 980 | 90.8 | 0.86 | 90.4 | 0.81 | 1.8 | 6.5 | 2 | |||||||||||||
Y280S-6 | 60 | 45 | 85.4 | 980 | 92 | 0.87 | 91.2 | 0.82 | 1.8 | 6.5 | 2 | |||||||||||||
Y280M-6 | 75 | 55 | 104 | 980 | 92 | 0.87 | 91.5 | 0.81 | 1.8 | 6.5 | 2 | |||||||||||||
Y315S-6 | 100 | 75 | 141 | 990 | 92.8 | 0.87 | 92.3 | 0.82 | 1.6 | 6.5 | 2 | |||||||||||||
Y315M-6 | 125 | 90 | 169 | 990 | 93.2 | 0.87 | 92.8 | 0.83 | 1.6 | 6.5 | 2 | |||||||||||||
Y315L1-6 | 150 | 110 | 206 | 990 | 93.5 | 0.87 | 92.9 | 0.83 | 1.6 | 6.5 | 2 | |||||||||||||
Y315L2-6 | 180 | 132 | 246 | 990 | 93.8 | 0.87 | 93.1 | 0.83 | 1.6 | 6.5 | 2 | |||||||||||||
Y355M1-6 | 220 | 160 | 300 | 990 | 94.1 | 0.86 | 93.4 | 0.84 | 1.9 | 6.7 | 2 | |||||||||||||
Y355M2-6 | 270 | 200 | 374 | 990 | 94.3 | 0.86 | 93.6 | 0.84 | 1.9 | 6.7 | 2 | |||||||||||||
Y355L-6 | 340 | 250 | 465 | 990 | 94.7 | 0.86 | 94 | 0.84 | 1.9 | 6.7 | 2 | |||||||||||||
380V 5OHz Synchronous Speed 750r/min (8 Poles) | ||||||||||||||||||||||||
Y-132S-8 | 3 | 2.2 | 5.85 | 710 | 80.5 | 0.71 | 79.7 | 0.62 | 2 | 5.5 | 2 | |||||||||||||
Y-132M-8 | 4 | 3 | 7.72 | 710 | 82 | 0.72 | 81.2 | 0.64 | 2 | 5.5 | 2 | |||||||||||||
Y-160M1-8 | 5.5 | 4 | 9.91 | 720 | 84 | 0.73 | 83.6 | 0.64 | 2 | 6.0 | 2 | |||||||||||||
Y-160M2-8 | 7.5 | 5.5 | 13.3 | 720 | 85 | 0.74 | 84.4 | 0.66 | 2 | 6.0 | 2 | |||||||||||||
Y-160L-8 | 10 | 7.5 | 17.7 | 720 | 86 | 0.75 | 85.1 | 0.68 | 2 | 5.5 | 2 | |||||||||||||
Y-180L-8 | 15 | 11 | 24.8 | 730 | 87.5 | 0.77 | 86.9 | 0.7 | 1.7 | 6.0 | 2 | |||||||||||||
Y-200L-8 | 20 | 15 | 34.1 | 730 | 88 | 0.76 | 87.3 | 0.71 | 1.8 | 6.0 | 2 | |||||||||||||
Y-225S-8 | 25 | 18.5 | 41.3 | 730 | 89.5 | 0.76 | 88.5 | 0.7 | 1.7 | 6.0 | 2 | |||||||||||||
Y-225M-8 | 30 | 22 | 47.6 | 730 | 90 | 0.78 | 88.8 | 0.71 | 1.8 | 6.0 | 2 | |||||||||||||
Y-250M-8 | 40 | 30 | 63 | 740 | 90.5 | 0.8 | 90 | 0.72 | 1.8 | 6.0 | 2 | |||||||||||||
Y280S-8 | 50 | 37 | 78.2 | 740 | 91 | 0.79 | 90.2 | 0.72 | 1.8 | 6.0 | 2 | |||||||||||||
Y280M-8 | 60 | 45 | 93.2 | 740 | 91.7 | 0.8 | 91.1 | 0.74 | 1.8 | 6.0 | 2 | |||||||||||||
Y315S-8 | 75 | 55 | 114 | 740 | 92 | 0.8 | 91.5 | 0.74 | 1.6 | 6.5 | 2 | |||||||||||||
Y315M-8 | 100 | 75 | 152 | 740 | 92.5 | 0.81 | 92 | 0.76 | 1.6 | 6.5 | 2 | |||||||||||||
Y315L1-8 | 125 | 90 | 179 | 740 | 93 | 0.82 | 92.6 | 0.77 | 1.6 | 6.5 | 2 | |||||||||||||
Y315L2-8 | 150 | 110 | 218 | 740 | 93.3 | 0.82 | 92.8 | 0.78 | 1.6 | 6.3 | 2 | |||||||||||||
Y355M1-8 | 180 | 132 | 260 | 740 | 93.8 | 0.81 | 93.3 | 0.79 | 1.9 | 6.3 | 2 | |||||||||||||
Y355M2-8 | 220 | 160 | 314 | 740 | 94 | 0.81 | 93.5 | 0.79 | 1.9 | 6.3 | 2 | |||||||||||||
Y355L-8 | 270 | 200 | 392 | 740 | 94.3 | 0.81 | 93.8 | 0.79 | 1.9 | 6.3 | 2 |
3 Phase Induction Motor GUARANTEE:
3 phase induction motor Y series Guarantee is for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
