8 Pole Three Phase Asynchronous Motor With Cast Iron Motor Body For Food Machine

  • 8 Pole Three Phase Asynchronous Motor With Cast Iron Motor Body For Food Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y-132S-8
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden cases
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application General Driving
Power 3HP / 2.2KW Pole 8
Phase 3 Phase Insulation Classtion Class B/F/H
Efficiency IE1,IE2,IE3 Type Asynchronous Motor
Highlight

3 phase asynchronous motor

,

squirrel cage electric motor
Leave a Message
Product Description





8 Pole Three Phase Asynchronous Motor With Cast Iron Motor Body For Food Machine









3 Phase Induction Motor USABLE RANGE:



Y series motors are widely used in places where not exists combustible, explosive, or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.







PRODUCT PARAMETER:



1. BRAND: CHIMP

2. RATED VOLTAGE: 380V

3. MODEL: Y series

4. RATED FREQUENCY: 50Hz (or 60Hz)

5. PRODUCT CATEGORY: an electric motor

6. PROTECTION CLASS: IP44 (or IP54)

7. BASE CENTER HEIGHT: 80-315mm

8. INSULATION CLASS: B

9. POWER RANGE: 0.55-220kw

10. WORK SYSTEM: S1





3 Phase Induction Motor APPLICATIONS:



Y series motor is an enclosed and fan-cooled three-phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC&DIN42673 standards—the Y connection for a motor of 3kw and below. And delta connection for 4kw and above.







ADVANTAGE:



1. Outstanding performance

2. High efficiency

3. Energy-saving

4. High starting torque

5. Low noise

6. Little vibration

7. Reliable operation and easy maintenance







PERFORMANCE CHART:



Model

Output

HP   KW

 Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Eff
(%)		 Power
Factor

Tstart/

Tn

Ist/

In

Tmax/

Tn
380V 5OHz Synchronous Speed 3000r/min (2 Poles)
Y-801-2 1 0.75 1.81 2830 75 0.84 73.8 0.79 2.2 6.5 2.3
Y-802-2 1.5 1.1 2.52 2830 77 0.86 76.5 0.81 2.2 7.0 2.3
Y-90S-2 2 1.5 3.44 2840 78 0.85 77.5 0.8 2.2 7.0 2.3
Y-90L-2 3 2.2 4.83 2840 80.5 0.86 79.7 0.82 2.2 7.0 2.3
Y-100L-2 4 3 6.39 2870 82 0.87 81.3 0.83 2.2 7.0 2.3
Y-112M-2 5.5 4 8.17 2890 85.5 0.87 84.8 0.83 2.2 7.0 2.3
Y-132S1-2 7.5 5.5 11.1 2900 85.5 0.88 84.9 0.86 2.0 7.0 2.3
Y-132S2-2 10 7.5 15 2900 86.2 0.88 85.5 0.86 2.0 7.0 2.3
Y-160M1-2 15 11 21.8 2930 87.2 0.88 86.5 0.86 2.0 7.0 2.3
Y-160M2-2 20 15 29.4 2930 88.2 0.88 87.6 0.85 2.0 7.0 2.3
Y-160L-2 25 16.5 35.5 2930 89 0.89 88.5 0.86 2.0 7.0 2.2
Y-160M-2 30 22 42.2 2940 89 0.89 88.1 0.87 2.0 7.0 2.2
Y-200L1-2 40 30 56.9 2950 90 0.89 88.7 0.86 2.0 7.0 2.2
Y-200L2-2 50 37 69.8 2950 90.5 0.89 89.7 0.86 2.0 7.0 2.2
Y-225M-2 60 45 83.9 2970 91.7 0.89 90.7 0.87 2.0 7.0 2.2
Y-250M-2 75 55 103 2970 91.5 0.89 90.6 0.86 2.0 7.0 2.2
Y280S-2 100 75 139 2970 92 0.89 91 0.86 2.0 7.0 2.2
Y280M-2 125 90 166 2970 92.5 0.89 91.4 0.86 2.0 7.0 2.2
Y315S-2 150 110 203 2980 92.5 0.89 91.4 0.86 1.8 6.8 2.2
Y315M-2 180 132 242 2980 93 0.89 91.8 0.87 1.8 6.8 2.2
Y315L1-2 220 160 292 2980 93.5 0.89 91.9 0.87 1.8 6.8 2.2
Y315L2-2 270 200 365 2980 93.5 0.89 92.3 0.87 1.8 6.8 2.2
Y355M-2 340 250 444 2980 94.5 0.9 93.3 0.88 1.6 7.0 2.2
Y355L-2 430 315 556 2980 95 0.9 93.9 0.88 1.6 7.1 2.2
380V 5OHz Synchronous Speed 1500r/min (4 Poles)
Y-801-4 0.75 0.55 1.51 1390 73 0.76 71.5 0.66 2.4 6.0 2.3
Y-802-4 1 0.75 2.01 1390 74.5 0.76 73 0.67 2.3 6.0 2.3
Y-90S-4 1.5 1.1 2.75 1400 78 0.78 77 0.71 2.3 6.5 2.3
Y-90L-4 2 1.5 3.65 1400 79 0.79 77.5 0.72 2.3 6.5 2.3
Y-100L1-4 3 2.2 5.03 1430 81 0.82 80.3 0.74 2.2 7.0 2.3
Y-100L2-4 4 3 6.82 1430 82.5 0.81 81.6 0.75 2.2 7.0 2.3
Y-112M-4 5.5 4 8.77 1440 84.5 0.82 83.3 0.76 2.2 7.0 2.3
Y-132S-4 7.5 5.5 11.69 1440 85.5 0.84 84.2 0.78 2.2 7.0 2.3
Y-132M-4 10 7.5 15.4 1440 87 0.85 86.1 0.8 2.2 7.0 2.3
Y-160M-4 15 11 22.6 1460 88 0.84 87.4 0.79 2.2 7.0 2.3
Y-160L-4 20 15 30.3 1460 88.5 0.85 87.8 0.8 2.2 7.0 2.3
Y-180M-4 25 18.5 35.9 1470 91 0.86 89.9 0.81 2.2 7.0 2.2
Y-180L-4 30 22 42.5 1470 91.5 0.86 90.7 0.81 2 7.0 2.2
Y-200L-4 40 30 56.8 1470 92.2 0.87 91.3 0.82 2 7.0 2.2
Y-225S-4 50 37 70.4 1480 91.8 0.87 91.1 0.84 1.9 7.0 2.2
Y-225M-4 60 45 84.2 1480 92.3 0.88 91.6 0.85 1.9 7.0 2.2
Y-250M-4 75 55 103 1480 92.6 0.88 91.5 0.84 2 7.0 2.2
Y280S-4 100 75 140 1480 92.7 0.89 91.7 0.84 1.9 7.0 2.2
Y280M-4 125 90 164 1480 93.5 0.89 92.4 0.85 1.9 7.0 2.2
Y315S-4 150 110 201 1480 93.5 0.89 92.5 0.86 1.8 6.8 2.2
Y315M-4 180 132 240 1490 94 0.89 92.8 0.86 1.8 6.8 2.2
Y315L1-4 220 160 289 1490 94.5 0.89 93.2 0.86 1.8 6.8 2.2
Y315L2-4 270 200 361 1490 94.5 0.89 93.2 0.86 1.8 6.8 2.2
Y355M-4 340 250 459 1485 94.7 0.87 93.6 0.87 1.6 6.8 2.2
Y355L-4 430 315 576 1485 95.2 0.87 94.1 0.87 1.6 6.9 2.2
380V 5OHz Synchronous Speed 1000r/min (6 Poles)
Y-801-6 0.5 0.37 1.2 900 70.5 0.68 68 0.59 2 5.5 2.2
Y-802-6 0.75 0.55 1.45 900 71.5 0.68 68 0.59 2 5.5 2.2
Y-90S-6 1 0.75 2.25 910 72.5 0.7 70.5 0.61 2 5.5 2.2
Y-90L-6 1.5 1.1 3.16 910 73.5 0.72 72 0.61 2 5.5 2.2
Y-100L-6 2 1.5 3.97 940 77.5 0.74 76.3 0.66 2 6.0 2.2
Y-112M-6 3 2.2 5.61 940 80.5 0.74 79.2 0.66 2 6.0 2.2
Y-132S-6 4 3 7.23 960 83 0.76 82 0.69   6.5 2.2
Y-132M1-6 5.5 4 9.4 960 84 0.77 83.1 0.7 2 6.5 2.2
Y-132M2-6 7.5 5.5 12.6 960 85.3 0.79 84.4 0.72 2 6.5 2.2
Y-160M-6 10 7.5 17 970 86 0.79 85.2 0.72 2 6.5 2
Y-160L-6 15 11 24.6 970 87 0.79 86.6 0.72 2 6.5 2
Y-180L-6 20 15 31.4 970 89.5 0.81 88.5 0.75 1.8 6.5 2
Y-200L1-6 25 18.5 37.7 970 89.8 0.83 88.7 0.77 1.8 6.5 2
Y-200L2-6 30 22 44.6 970 90.2 0.83 89.3 0.78 1.8 6.5 2
Y-225M-6 40 30 59.5 980 90.2 0.85 89.6 0.8 1.7 6.5 2
Y-250M-6 50 37 72 980 90.8 0.86 90.4 0.81 1.8 6.5 2
Y280S-6 60 45 85.4 980 92 0.87 91.2 0.82 1.8 6.5 2
Y280M-6 75 55 104 980 92 0.87 91.5 0.81 1.8 6.5 2
Y315S-6 100 75 141 990 92.8 0.87 92.3 0.82 1.6 6.5 2
Y315M-6 125 90 169 990 93.2 0.87 92.8 0.83 1.6 6.5 2
Y315L1-6 150 110 206 990 93.5 0.87 92.9 0.83 1.6 6.5 2
Y315L2-6 180 132 246 990 93.8 0.87 93.1 0.83 1.6 6.5 2
Y355M1-6 220 160 300 990 94.1 0.86 93.4 0.84 1.9 6.7 2
Y355M2-6 270 200 374 990 94.3 0.86 93.6 0.84 1.9 6.7 2
Y355L-6 340 250 465 990 94.7 0.86 94 0.84 1.9 6.7 2
380V 5OHz Synchronous Speed 750r/min (8 Poles)
Y-132S-8 3 2.2 5.85 710 80.5 0.71 79.7 0.62 2 5.5 2
Y-132M-8 4 3 7.72 710 82 0.72 81.2 0.64 2 5.5 2
Y-160M1-8 5.5 4 9.91 720 84 0.73 83.6 0.64 2 6.0 2
Y-160M2-8 7.5 5.5 13.3 720 85 0.74 84.4 0.66 2 6.0 2
Y-160L-8 10 7.5 17.7 720 86 0.75 85.1 0.68 2 5.5 2
Y-180L-8 15 11 24.8 730 87.5 0.77 86.9 0.7 1.7 6.0 2
Y-200L-8 20 15 34.1 730 88 0.76 87.3 0.71 1.8 6.0 2
Y-225S-8 25 18.5 41.3 730 89.5 0.76 88.5 0.7 1.7 6.0 2
Y-225M-8 30 22 47.6 730 90 0.78 88.8 0.71 1.8 6.0 2
Y-250M-8 40 30 63 740 90.5 0.8 90 0.72 1.8 6.0 2
Y280S-8 50 37 78.2 740 91 0.79 90.2 0.72 1.8 6.0 2
Y280M-8 60 45 93.2 740 91.7 0.8 91.1 0.74 1.8 6.0 2
Y315S-8 75 55 114 740 92 0.8 91.5 0.74 1.6 6.5 2
Y315M-8 100 75 152 740 92.5 0.81 92 0.76 1.6 6.5 2
Y315L1-8 125 90 179 740 93 0.82 92.6 0.77 1.6 6.5 2
Y315L2-8 150 110 218 740 93.3 0.82 92.8 0.78 1.6 6.3 2
Y355M1-8 180 132 260 740 93.8 0.81 93.3 0.79 1.9 6.3 2
Y355M2-8 220 160 314 740 94 0.81 93.5 0.79 1.9 6.3 2
Y355L-8 270 200 392 740 94.3 0.81 93.8 0.79 1.9 6.3 2

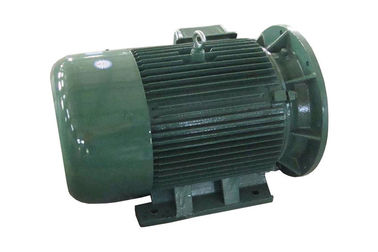

8 Pole Three Phase Asynchronous Motor With Cast Iron Motor Body For Food Machine 0

3 Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.






OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
