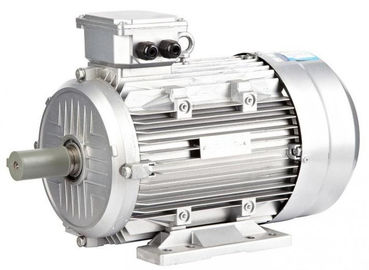

Three Phase IE2 Motor , Asynchronous Induction Motor 400v 50hz 6 Poles 1HP / 0.75KW

  • Three Phase IE2 Motor , Asynchronous Induction Motor 400v 50hz 6 Poles 1HP / 0.75KW
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number IE2-80M1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE2 Motor Application Driving
Output 1HP / 0.75KW Pole 2
Voltage 240v Efficiency IE2
Cooling Method IC411
Highlight

high efficiency induction motor

,

three phase induction motor
Leave a Message
Product Description

IE2 High-Efficiency Three-Phase Asynchronous Induction Motor 400v 50hz 6 Pole



IE2 Motor INTRODUCTION AND APPLICATION:



IE2 High-Efficiency Energy - Saving Induction Electric Motor electric power steering motor



Output Range: 0.55KW~450KW

Voltage: 220V/415V/380V/660V/as required
Frequency: 50Hz/60Hz/as required
No. of Poles: 2, 4, 6, 8, 10, etc
Speed: 450rpm~3000rpm
Protection class: IP55
Insulation class: F
Connection: Y/D
Mounting styles: B3/B5/B35/V1, etc.
Altitude: less than 1000 meters
Working temperature: -15°C~40°C
Duty type: S1
Cooling method: IC411



OPERATING CONDITIONS:



Ambient temperature -15°c to 40 °c
Altitude ≤1000m
Rated voltage 220V, 230V, 240V, 110V, 115V, 120V, etc
Rated frequency 50HZ, 60HZ, 50HZ/60HZ
Duty Continuous(S1)
Insulation class Class B, Class F
Protection class IP44, IP54, IP55
Cooling method IC0141





PERFORMANCE CHART:



Model Output KW Voltage
(V)		 Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 T start/Tn Ist/In Tmax/Tn Noise LwdB
(A)
5OHz Synchronous Speed 3000r/min (2 Poles)
IE2-80M1-2 0.75 400 1.7 2850 77.4 0.82 2.3 6.8 2.3 62
IE2-80M2-2 1.1 400 2.4 2870 79.6 0.83 2.3 7.1 2.3 62
IE2-90S-2 1.5 400 3.2 2880 81.3 0.84 2.3 7.3 2.3 67
IE2-90L-2 2.2 400 4.5 2880 83.2 0.85 2.3 7.6 2.3 67
IE2-100L1-2 3 400 5.9 2800 84.6 0.87 2.2 7.8 2.3 74
IE2-112M-2 4 400 7.6 2900 85.8 0.88 2.3 8.1 2.3 77
IE2-132S1-2 5.5 400 10.4 2910 87 0.88 2.2 8.2 2.3 79
IE2-132S2-2 7.5 400 13.8 2910 88.1 0.89 2.2 7.8 2.3 79
IE2-160M1-2 11 400 20 2940 89.4 0.89 2.2 7.9 2.3 81
IE2-160M2-2 15 400 26.9 2940 90.3 0.89 2.2 8 2.3 81
IE2-160L-2 18.5 400 33 2940 90.9 0.89 2.2 8 2.3 81
IE2-180M-2 22 400 39.1 2950 91.3 0.89 2.2 8.1 2.3 83
IE2-200L1-2 30 400 52.9 2960 92 0.89 2 7.5 2.3 84
IE2-200L2-2 37 400 64.9 2960 92.5 0.89 2 7.5 2.3 84
IE2-225M-2 45 400 78.6 2960 92.9 0.89 2.2 7.5 2.3 86
IE2-250M-2 55 400 96 2970 93.2 0.89 2.2 7.6 2.3 89
IE2-280S-2 75 400 130 2975 93.8 0.89 2 6.9 2.3 91
IE2-280M-2 90 400 155 2975 94.1 0.89 2 6.9 2.3 91
IE2-315S-2 110 400 187 2975 94.3 0.9 2 7 2.2 92
IE2-315M-2 132 400 224 2975 94.6 0.9 2 7 2.2 92
IE2-315L1-2 160 400 268 2975 94.8 0.91 2 7.1 2.2 92
IE2-315L2-2 200 400 334 2975 95 0.91 2 7.1 2.2 92
IE2-355M-2 250 400 518 2980 95 0.91 1.6 7.1 2.2 100
IE2-355L-2 315 400 526 2980 95 0.91 1.6 7.2 2.2 100
5OHz Synchronous Speed 1500r/min (4 Poles)
IE2-80M1-4 0.75 400 1.8 1420 79.6 0.76 2.3 6.4 2.3 56
IE2-90S-4 1.1 400 2.6 1420 81.4 0.77 2.3 6.6 2.3 59
IE2-90L-4 1.5 400 3.5 1420 82.8 0.78 2.3 6.7 2.3 59
IE2-100L1-4 2.2 400 4.7 1440 84.3 0.8 2.3 7.3 2.3 64
IE2-100L2-4 3 400 6.2 1440 85.5 0.81 2.3 7.5 2.3 64
IE2-112M-4 4 400 8.1 1445 86.6 0.81 2.3 7.5 2.3 65
IE2-132S-4 5.5 400 11.1 1450 87.7 0.82 2 7.5 2.3 71
IE2-132M-4 7.5 400 14.7 1450 88.7 0.83 2 7.3 2.3 71
IE2-160M-4 11 400 21.3 1470 89.8 0.83 2.2 7.4 2.3 73
IE2-160L-4 15 400 28.4 1470 90.6 0.84 2.2 7.5 2.3 73
IE2-180M-4 18.5 400 34.4 1470 91.2 0.85 2.2 7.6 2.3 76
IE2-180L-4 22 400 40.8 1470 91.6 0.85 2.2 7.7 2.3 76
IE2-200L-4 30 400 55.2 1470 92.3 0.85 2.2 7.1 2.3 76
IE2-225S-4 37 400 67 1480 92.7 0.86 2.2 7.3 2.3 78
IE2-225M-4 45 400 81.1 1480 93.1 0.86 2.2 7.3 2.3 78
IE2-250M-4 55 400 99 1480 93.5 0.86 2.2 7.3 2.3 79
IE2-280S-4 75 400 132 1480 94 0.87 2.2 6.8 2.3 80
IE2-280M-4 90 400 157 1480 94.2 0.88 2.2 6.9 2.3 80
IE2-315S-4 110 400 189 1480 94.5 0.89 2.1 6.9 2.2 88
IE2-315M-4 132 400 226 1480 94.7 0.89 2.1 6.9 2.2 88
IE2-315L1-4 160 400 270 1480 94.9 0.9 2.2 6.9 2.2 88
IE2-315L2-4 200 400 337 1480 95.1 0.9 2.1 6.9 2.2 88
IE2-355M-4 250 400 422 1490 95.1 0.9 2.1 6.9 2.2 95
IE2-355L-4 315 400 531 1490 95.1 0.9 2.1 6.9 2.2 95
5OHz Synchronous Speed 1000r/min (6 Poles)
IE2-90S-6 0.75 400 2 930 75.9 0.71 2 5.8 2.1 57
IE2-90L-6 1.1 400 2.8 930 78.1 0.72 2 5.9 2.1 57
IE2-100L1-6 1.5 400 3.7 930 79.8 0.72 2 5.9 2.1 61
IE2-112M-6 2.2 400 5.4 956 81.8 0.72 2.1 6.2 2.1 65
IE2-132S-6 3 400 7.1 960 83.3 0.72 2 6.4 2.1 69
IE2-132M1-6 4 400 9.2 965 84.6 0.74 2 6.6 2.1 69
IE2-132M2-6 5.5 400 12.3 965 86 0.75 2 6.8 2.1 69
IE2-160M-6 7.5 400 15.9 970 87.2 0.78 2.1 6.8 2.1 73
IE2-160L-6 11 400 22.7 970 88.7 0.79 2.1 6.9 2.1 73
IE2-180M-6 15 400 29.8 980 89.7 0.81 2 7.3 2.1 73
IE2-200L1-6 18.5 400 36.5 980 90.4 0.81 2.1 7.2 2.1 73
IE2-200L2-6 22 400 43.1 980 90.9 0.81 2.1 7.3 2.1 73
IE2-225M-6 30 400 57.6 980 91.7 0.82 2 6.8 2.1 74
IE2-250M-6 37 400 69.8 980 92.2 0.83 2.1 7 2.1 76
IE2-280S-6 45 400 82 980 92.7 0.85 2.1 7.2 2 78
IE2-280M-6 55 400 100 980 93.1 0.85 2.1 7.2 2 78
IE2-315S1-6 75 400 136 990 93.7 0.85 2 6.5 2 83
IE2-315S2-6 90 400 163 990 94 0.85 2 6.6 2 83
IE2-315M-6 110 400 198 990 94.3 0.85 2 6.6 2 83
IE2-315L1-6 132 400 234 990 94.6 0.86 2 6.6 2 83
IE2-315L2-6 160 400 283 990 94.8 0.86 1.9 6.7 2 85
IE2-355M2-6 200 400 353 990 95 0.86 2 6.8 2 85
IE2-355L-6 250 400 442 990 95 0.86 2 6.8 2 85



INSTALLATION SIZE AND OVERALL DIMENSION
Frame No. Poles Installation Size Overall Dimension
A A/2 B C D E F G H K M N P S T AB AC AD HD L DH*
IE2-80m 2,4,6 125 62.5 100 50 19 40 6 16 80 10 165 130 200 12 3.5 153 157 140 220 295 M6×l6
IE2-90S 2,4,6 140 70 100 56 24 50 8 20 90 10 165 130 200 12 3.5 177 177 150 240 327 M8×l9
IE2-90L 2,4,6 140 72 125 56 24 50 8 20 90 10 165 130 200 12 3.5 177 177 150 240 357 M8×l9
IE2-100L 2,4,6 160 80 140 63 28 60 8 24 100 12 215 180 250 15 4 196 197 167 267 403 M10×22
IE2-112M 2,4,6 190 95 140 70 28 60 8 24 112 12 215 180 250 15 4 226 219 177 289 430 M10×22
IE2-132S 2,4,6 216 108 140 30 38 30 10 33 132 12 265 230 300 15 4 260 258 196 328 460 M12×28
IE2-132M 2,4,6 216 108 178 30 38 80 10 33 132 12 265 230 300 15 4 260 258 196 328 499 M12×28
IE2-160M 2,4,6 254 127 210 108 42 110 12 37 160 15 300 250 350 19 5 314 314 255 415 615 M16×36
IE2-160L 2,4,6 254 127 254 108 42 110 12 37 160 15 300 250 350 19 5 314 314 255 415 660 M16×36
IE2-180M 2,4,6 279 140 241 121 48 112 14 43 180 15 300 250 350 19 5 355 356 270 450 700 M16×36
IE2-180L 2,4,6 279 140 279 121 48 110 14 43 180 15 300 250 350 19 5 355 356 270 450 740 M16×36
IE2-200L 2,4,6 318 159 305 133 55 110 16 49 200 19 350 300 400 19 5 395 397 302 502 770 M20×42
IE2-225S 4 356 178 286 149 60 140 18 53 225 19 400 350 450 19 5 435 445 323 548 815 M20×42
IE2-225M 2 356 178 311 149 55 110 16 49 225 19 400 350 450 19 5 435 445 323 548 825 M20×42
4,6 356 178 311 149 60 142 18 53 225 19 400 350 450 19 5 435 445 323 548 845 M20×42
IE2-250M 2 406 203 349 168 60 140 18 53 250 24 500 450 550 19 5 490 485 372 622 920 M20×42
4,6 406 203 349 168 65 140 18 58 250 24 500 450 550 19 5 490 485 372 622 920 M20×42
IE2-280S 2 457 229 368 190 65 140 18 58 280 24 500 450 550 19 5 542 546 390 670 991 M20×42
4,6 457 229 368 190 75 140 20 68 280 24 500 450 550 19 5 542 546 390 670 991 M20×42
IE2-280M 2 457 229 419 190 65 140 18 58 280 24 500 450 550 19 5 542 546 390 670 1046 M20×42
4,6 457 229 419 190 75 140 20 68 280 24 500 450 550 19 5 542 546 390 670 1046 M20×42
IE2-315S 2 508 254 406 216 65 140 18 58 315 28 600 550 660 24 6 628 620 540 855 1185 M20×42
4,6 508 254 406 216 80 170 22 71 315 28 600 550 660 24 6 628 620 540 855 1220 M20×42
IE2-315M 2 508 254 457 216 65 140 18 58 315 28 600 550 660 24 6 628 620 540 855 1290 M20×42
4,6 508 254 457 216 80 170 22 71 315 28 600 550 660 24 6 628 620 540 855 1325 M20×42
IE2-315L 2 508 254 508 216 65 140 18 58 315 28 600 550 660 24 6 628 620 540 855 1290 M20×42
4,6 508 254 508 216 80 170 22 71 315 28 600 550 660 24 6 628 620 540 855 1325 M20×42
IE2-355M 2 610 305 560 254 75 140 20 68 355 28 740 680 800 24 6 726 700 647 1002 1484 M20×42
4,6 610 305 560 254 95 170 25 86 355 28 740 680 800 24 6 726 700 647 1002 1514 M20×42
IE2-355L 2 610 305 630 254 75 140 20 68 355 28 740 680 800 24 6 726 700 647 1002 1484 M20×42
4,6 610 305 630 254 95 170 25 86 355 28 740 680 800 24 6 726 700 647 1002 1484 M20×42



IE2 Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
