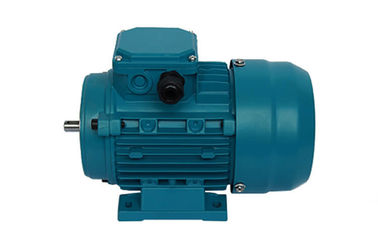

IE1 IE2 IE3 B35 IEC Standard Motor Three Phase AC Electric Motor 7.5KW
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | MS3-160M-6 |
| Minimum Order Quantity | 1pc |
| Price | negotiated |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | T/T |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IE2 Motor | Output | 7.5KW/10HP |
|---|---|---|---|
| Voltage | 415v 50hz | Winding | Copper Wire |
| Standard | IEC 3 | Housing | Aluminum |
| Pole | 6 | Efficiency | High |
| Highlight | high efficiency induction motor,high efficiency ac motor |
||
Product Description
IE1 IE2 IE3 B35 IEC Standard Motor Three Phase AC Electric Motor 7.5KW
Description:
MS motors have good performance, safety, and reliable operation, nice appearance and can be maintained very conveniently while with low noises, slight vibration, lightweight and simple construction. Therefore, these series motors can be used for general driving.
IE2 Motor Technical Data:
| Model | Power | Rated Current | Rated Speed | Eff(%) | Power Factor | Rated Torque | T start/Tn | Tmax/Tn | Ist/In | |||
| HP | KW | 380v | 400v | 415v | rpm | |||||||
| MS3-160M-6 | 7.5 | 10 | 16.6 | 16 | 15 | 970 | 89.1 | 0.77 | 73.8 | 1.7 | 2.5 | 5.9 |
IE2 Motor Applications:
MS series three-phase asynchronous aluminum housing motor, with the latest design in entirety, are made of selected quality materials and conform to the IEC standard.
Electric motor features:
1. Electric motor frame from 56 – 355, output range from 0.17HP to 430HP

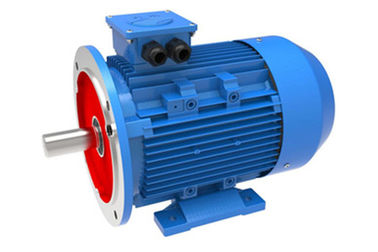

2. Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101)
3. Optional voltage 110V, 120V, 220V, 240V, 220/380V, 230V/400V, 380V/660V, 50HZ or 60HZ
4. Protection type IP44, IP54, IP55 on request
5. Multiple mounting arrangements for optional
6. Aluminum frame, end shields, and base
Electric Aluminium Housing AC Motor:
| Series Name: | MS3 |
| Certificate: | CE, ISO9001 |
| Main Market: | Western Europen |
| Standard: | IE1 / IE2 / IE3 |
| Housing: | Cast Iron / Aluminium |
| Bearing: | C&U,NSK,SKF |
| Lamination: | Cold Rolled Steel(DW 800) |
| Wire: | 100% copper |
| Power: | 0.06kW-900kW |
| Frame Size: | 56-450(mm) |
| Poles: | 2,4,6,8,10 |
| Duty: | S1,S2,S3 |
| Insulation Class: | F |
| IP: | 55 |
| IM: | Horizontal / Vertical |
| Delivery Time: | 40 Days |
| Package | ply-wooden box/pallets |
Operating conditions:
| Ambient temperature | -15°c ‹ Θ ‹ 40°c |
| Altitude | Not exceeding 1000meters |
| Rated voltage | 220V |
| Rated frequency | 50Hz,60Hz |
| Duty/Rating | Continuous(S1) |
| Protection class | IP44, IP54 |
| Insulation class | Class B, F |
| Cooling method | IC411 |
IE2 Motor Performance chart:
IE2 Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
