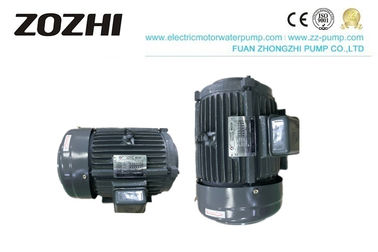

Electric Hollow Shaft Motor Hydraulic 0.75KW YT802-4 Aluminum Housing F Insulation Class

  • Electric Hollow Shaft Motor Hydraulic 0.75KW YT802-4 Aluminum Housing F Insulation Class
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Hydraulic Pressure Pumps
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pole 4 Rotation Direction Clockwise
Motor Bearing C&U (SKF For Choice) Efficiency IE1,IE2,IE3
Motor Housing Aluminum Insulation Class F Class
Product Name Hollow Shaft Motor
Highlight

Electric Hydraulic Hollow Shaft Motor

,

Hydraulic Clockwise Hollow Shaft Motor

,

IE2 Hydraulic Hollow Shaft Motor
Leave a Message
Product Description

YT802-4 0.75KW Ac Hollow Shaft Electric Motor hydraulic parts with hydraulic motor for oil pump

Hollow Shaft Motor

Description



Motors' hydraulic power station can use for power pack design. could match with gear pump, vane pumps and all kinds of hydraulic pump



Ambient temperature:-15°C<0<40°C

Sea level: not exceed 1000m

Rated voltage:±5%



Product Specifications:

Model Number Shaft End Size
Dimension mount distance bolt size ID span shaft width keyway
TFP 56 M6x1 56 12 13.2 3
PA, KP, HGP-2A 63.5 M8x1.25 50.77 12.5 13.8 4
DS, FB1 98 M8x1.25 70 16 18.2 5
HGP-1A 64 M6x1 30 12 13.7 4
15L, VPE-F8~F24 106 M10x1.5 82.55 12.7 14.3 3.175
TSP, EGB 106 M10x1.5 82.55 15.87 17.6 3.97
VVP-F8-F20 106 M10x1.5 82.55 15.87 17.6 3.97
HGP-3A 106 M10x1.5 82.55 15.87 17.6 3.97
NOP, TOP 68 M8x1.25 47 14 16 4
A16, A22, VQ15 106 M8x1.25 82.55 19.05 21.7 4.8
PV2R1 106 M8x1.25 82.55 19.05 21.7 4.8
30L, 50T 90 M10x1.5 95.02 19.05 21.7 4.8
VPE-F25~F40 90 M10x1.5 95.02 19.05 21.7 4.8
PB 106 M10x1.5 82.55 20 22 5
A37, A36, P36, P46 106 M12x1.75 101.6 22.23 25.01 6.35
VQ25 106 M12x1.75 101.6 22.23 25.01 6.35
PV2R2 146 M12x1.75 101.6 25.4 28.18 6.35
150T 187 M12x1.75 160 30 33 7







Application



hydraulic pump motor



hydraulic electric motor hollow shaft electric motor



Production line

Electric Hollow Shaft Motor Hydraulic 0.75KW YT802-4 Aluminum Housing F Insulation Class 2




Electric Hollow Shaft Motor Hydraulic 0.75KW YT802-4 Aluminum Housing F Insulation Class 3



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH Electric Hollow Shaft Motor Hydraulic 0.75KW YT802-4 Aluminum Housing F Insulation Class 9
water pump water pump mechnical seal

Electric Hollow Shaft Motor Hydraulic 0.75KW YT802-4 Aluminum Housing F Insulation Class 13

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
