1HP 0.75KW Electric Motor Water Pump 1.5DKM-20 For Domestic House Watering Supply
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Electric Motor Water Pump | Power | 1 / 0.75 |
|---|---|---|---|
| Flow Max | 240 L/min | Head Max | 20 M |
| Structure | Single-stage Mono Block Pump | Pipe Size | 1.5"x1.5" |
| Highlight | electronic water pump,commercial electric water pump |
||
Product Description

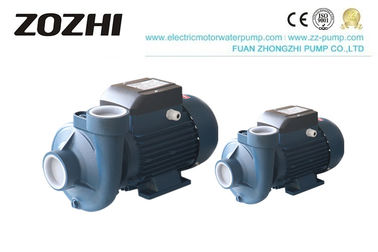

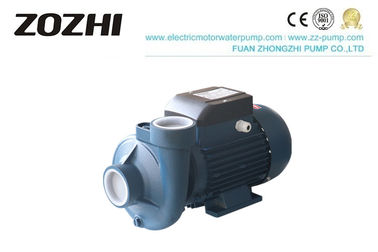

1HP 0.75KW Electric Motor Water Pump 1.5DKM-20 For Domestic House Watering Supply
Electric Motor Water Pump Description:
1.5DKM-20 Single-phase 220V/50HZ, Brass or plastic impeller, carbon steel motor shaft, the thermal protector inside. Centrifugal pumps with a single impeller can offer high flow rates, provide smooth delivery, and regulate the flow rate over a wide range without damaging the pump.
For the correct functioning of the pump, use clean water or non-aggressive liquids charged with small solid impurities.
To be used in a flow irrigation system in gardening, agriculture, and industrial fittings.
Working conditions
Max Temperature of Fluid up to+80oC.
Max Pressure:10bar.
Max Ambient Temperature up to40oC.
Application:
1. Tank filling
2. Domestic house watering supply
3. Water transfer
4. Pressure boosting
5. Irrigation
Technical data:
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| 1.5DKM-16 | 0.75 / 0.55 | 4 | 2850 | 180 | 16 | 9 | 1.5"x1.5" | 320x180x210 | 9.9 |
| 1.5DKM-20 | 1 / 0.75 | 4.8 | 2850 | 240 | 20 | 9 | 1.5"x1.5" | 320x180x210 | 12 |
| 2DKM-16 | 1.5 / 1.1 | 6.2 | 2850 | 480 | 21 | 9 | 2"x2" | 380x235x250 | 23 |
| 2DKM-20 | 2.0 / 1.5 | 9.4 | 2850 | 540 | 23 | 9 | 2"x2" | 380x235x250 | 25 |
Our service:
1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
1 year.
