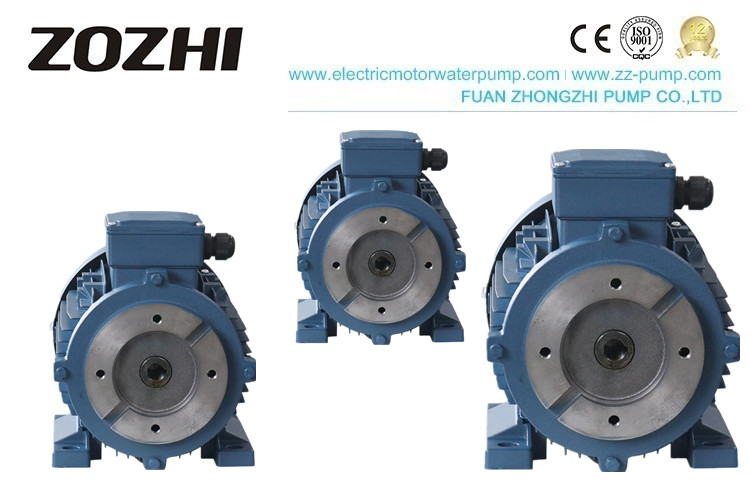

Hydraulic Electric Hollow Shaft Motor Three Phase 380V Aluminum Housing Low Noise

  • Hydraulic Electric Hollow Shaft Motor Three Phase 380V Aluminum Housing Low Noise
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number hydraulic motor
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.5kw 1.5kw 2.2kw 4kw 5.5kw 7.5kw Application Hydraulic System
Voltage/Frequency 220V 230/380V 60HZ Motor Bearing C&U (SKF For Choice)
Efficiency IE1 IE2 IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
Highlight

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

Hydraulic Electric Hollow Shaft Motor
Leave a Message
Product Description

Hydraulic Electric Hollow Shaft Motor Three Phase 380V Aluminum Housing Low Noise

Hollow Shaft Motor

Description



The hydraulic series electric motor drives a small machine, especially for households and workshops that only need a three-phase power supply.
1. Low noise
2. lower temperature raising and starting current
3. higher starting torque
4. reliable operation
5. easy maintenance
6. pretty appearance

Application





Direct-connected with a vane pump



www.electricmotorwaterpump.com

Note



1. Be sure to correct concentricity during installation; allow 0.1mm deviation


2. Be sure to confirm the matching size of the oil pump and motor before purchasing. Please consult for more details


3. If you don't know what oil pump to match, please measure the "shaft size," "flange inner diameter," and "hole distance" of your motor? We will find a suitable motor for you based on the size



hydraulic motor





Data



Model Rated Output Rated Current Rated Speed Eff Power Factor Starting Current Ts/tn Tmax/Tn Axis Bore Axis Key height Bore Depth Front Cover Oil Pump Fixed Position Oil Pump Model
HP KW A r/min % cosΦ times times Φx键宽 C E halt止口Φ Screw Hole Distance Model
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20,VP12,VP12/20
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12x4 13.7 28 50.8 82.55M8 HGP-1A
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 15.875x4 17.7 32 82.55 106.3 M10 HGP-3A

Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY,HGP-2A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12x4 13.7 28 50.8 82.55 M8 HGP-1A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 16x5 18 37 38 70x100 MB CBN CBT
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP30, VP40
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A

Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 36 95.02 90X90 M10 VP30, VP40
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 16X5 18 37 38 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 18x6 18 37 38.00 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1

Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 16x5 18 37 38.00 70x100 MB CBN CBT
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP-30 VP-40
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 22x5 24 50 96 90x90 M10 50T
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 11.4x4 Φ15-4齿 37 38.00 70x100 MB CBN 4齿花键

Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 22x5 24 50 96 90x90 M10 50T-F
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 16x5 18 37 38.00 70x100 MB CBN CBT
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 25.4x6.35 28.2 50 101.6 Φ146 M12 T6B PV2R2
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T

Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 19.05x4.76 21.5 38 82.55 106 M10 PV2R1 FA
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 22.23x6.35 25.08 35 101.6 146 M12 T6C
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 25.4x6.35 28.2 50 101.6 146 M12 T6B PV2R2
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 22.23x4.76 24.5 52 101.6 146 M12 S25V(S20V)25VQ
