Food Machinery 3 Phase IP55 Hollow Shaft Hydraulic Motor

Hollow Shaft Motor

Description

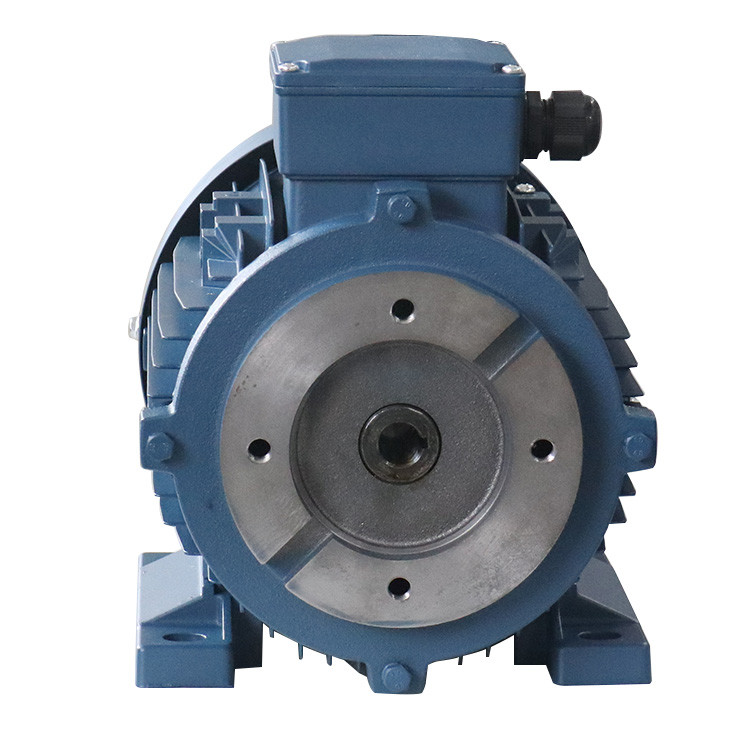

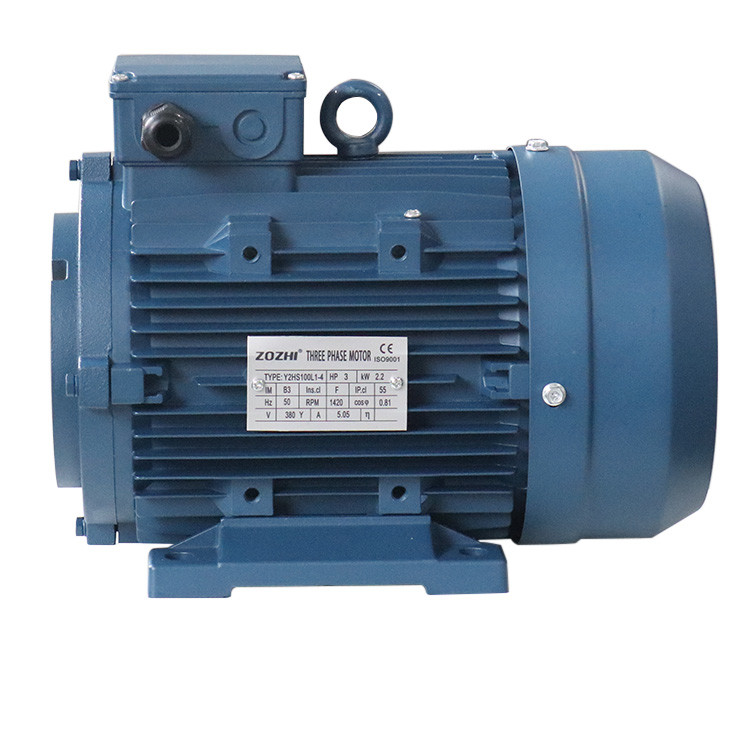

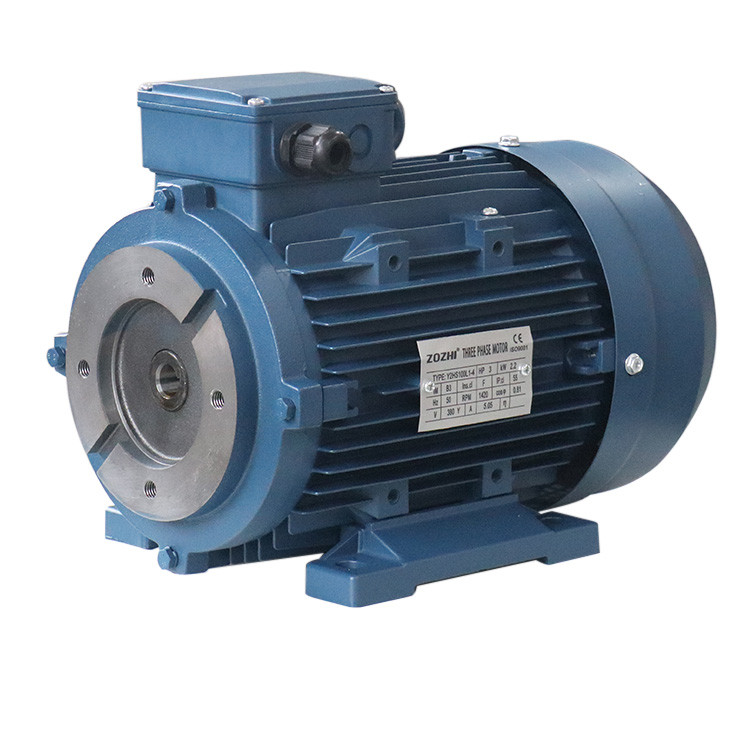

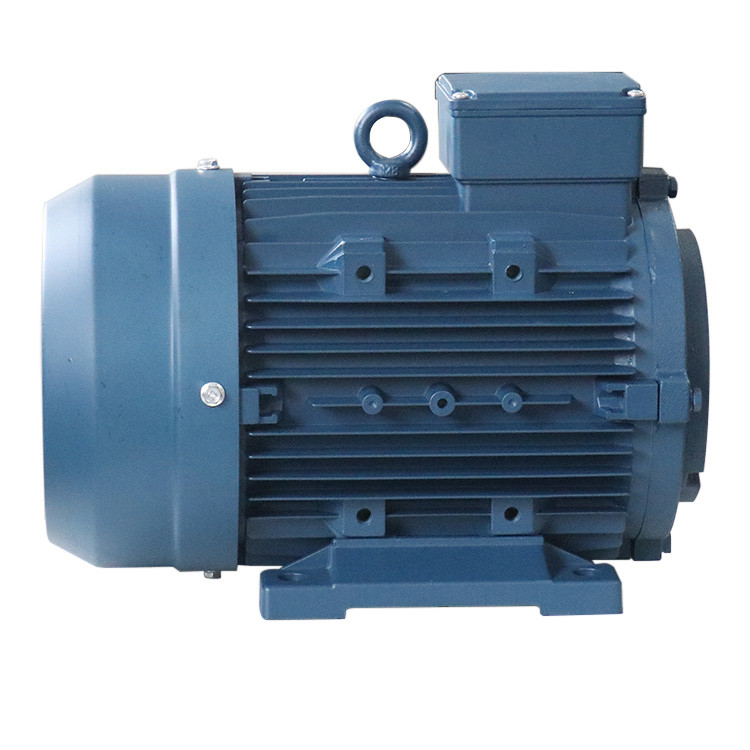

Product name: Hollow Shaft Hydraulic Motor

1. Voltage: any voltage within 110-660V and the range of 50-60HZ; can be matched with the export of user products.
2. Working system: S1; Insulation class: F class (H class can be manufactured according to user requirements).

3. Protection grade IP44/IP55.
4. Cooling method: IC411.
5. Connection method: Motors with a rated power of 3KW and below adopt Y connection; motors with a rated power of 4KW and above adopt Δ connection.

6. Ambient temperature: -15℃-40℃ Altitude does not exceed 1000 meters.

Products are widely used in injection molding machinery, stretching machinery, press machinery, CNC machine tools, food machinery, vulcanization machinery, engineering machinery, plastic machinery, die casting machinery, metallurgical machinery, mining machinery, and other hydraulic systems.

Performance characteristics of hollow shaft hydraulic motor

Appearance design:

Hollow Shaft Hydraulic Motor Adopt YE2 motor shape design. It can produce a top or side outlet with a beautiful and elegant appearance.

Electromagnetic design:

In terms of electromagnetic design, it is designed according to the requirements of hydraulic motors. It has the characteristics of low noise, low-temperature rise, and high efficiency. Efficiency meets the needs of the GB18613-2012 standard.

Hollow Shaft Hydraulic Motor Structural design:

In the structural design, an oil drain groove is added at the joint of the oil pump and the motor to prevent hydraulic oil from immersing in the motor, ensuring the safe use of the motor and easy disassembly. In addition, the mating surface of the motor and the pump has high machining accuracy and is coaxial with the pump. As a result, it runs smoothly, has low noise, and is easy to maintain.

Operational performance:

After the direct connection mode is adopted, the operation is smoother, making the noise more petite. And the oil pump can be replaced separately. The hydraulic motor has an internal shaft, which can be directly matched with the vane pump, gear pump, lubricating pump, etc., tightly matched, without coupling. Easy to assemble, saving space and cost.

Note

1. Be sure to correct concentricity during installation. Allow 0.1mm deviation

2. Be sure to confirm the matching size of the oil pump and motor before purchasing. Please consult for more details

3. If you don't know what oil pump to match, please measure the "shaft size," "flange inner diameter," and "hole distance" of your motor? We will find a suitable motor for you based on the size
