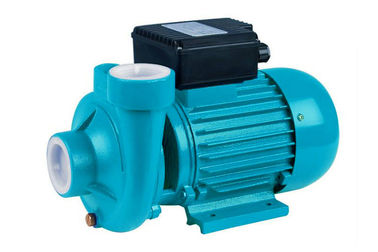

Dkm Series 0.75hp Electric Motor Water Pump 110v 60hz For Sewage Area
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | CE/SGS/ISO |
Model Number | 2DKM-16 |
Minimum Order Quantity | 1pc |
Price | negotiated |
Packaging Details | Packed in cartons , overall size:380x235x250mm/pc, N.W.: 25kgs |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 30000pcs/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplication | Boosting Waste Water | Output | 0.75HP / 0.55KW |
---|---|---|---|
Flow Max | 180 L/Min | Head Max | 16M |
Usage | Waste Water | Inlet/Outlet | 1.5"x1.5" |
Feature | Big Flow | Name | Sewage Water Pumps |
Product Name | Electric Motor Water Pump | ||
Highlight | electronic water pump,commercial electric water pump,0.75hp electric motor driven water pump |
Dkm Series 0.75hp Electric Motor Water Pump 110v 60hz For Sewage Area
RANGE OF PERFORMANCE
8Flow rate up to 280 l/min (22.8m3/h)
8Head up to 20m
LIMITS OF USE
8Manometric suction lift to 9m
8Liquid temperature up to +60°C
8Environment temperature up to +40°C
INSTALLATION AND USE
8These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical, and simple to use, they are suitable for domestic use and, in particular, for distributing water in combination with small pressure sets for irrigating gardens. The pumps must be installed in a covered area, protected against inclement weather.
MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B
8Protection grade IP44
MATERIALS
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum
8Impeller: Brass
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing: NSK, C&U, or local quality.
Electric Motor Water Pump TECHNICAL DATA
Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
1.5DKM-16 | 0.75 / 0.55 | 4 | 2850 | 180 | 16 | 9 | 1.5"x1.5" | 320x180x210 | 9.9 |
1.5DKM-20 | 1 / 0.75 | 4.8 | 2850 | 240 | 20 | 9 | 1.5"x1.5" | 320x180x210 | 12 |
2DKM-16 | 1.5 / 1.1 | 6.2 | 2850 | 480 | 21 | 9 | 2"x2" | 380x235x250 | 23 |
2DKM-20 | 2.0 / 1.5 | 9.4 | 2850 | 540 | 23 | 9 | 2"x2" | 380x235x250 | 25 |
Other voltages and frequencies available on request
STRUCTURAL CHARACTERISTICS
Main Specification | Standard | Optional |
Transmission medium | Clean Water, sewage water, and fluids | |
Pump body | Cast Iron | |
Impeller | Brass with a centrifugal radial flow | |
Motor housing | Aluminum | |
Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
Thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
ADVANTAGE
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
It has advantages of high efficiency, saving energy, low noise, reliable performance.
OUR SERVICE
1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
