Cast Iron Electric Motor Water Pump , Horizontal Multistage Centrifugal Pump For Domestic
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | 1.5HP / 1.1KW | Flow Max | 150L/Min |
|---|---|---|---|
| Head Max | 50M | Suction Max | 9M |
| Phase | Single Phase/3phase | Voltage | 220-240v |
| Type | Water Pump | Fuel | Electric |
| Product Name | Electric Motor Water Pump | ||
| Highlight | electronic water pump,commercial electric water pump,cast iron electric centrifugal water pump |
||
Product Description

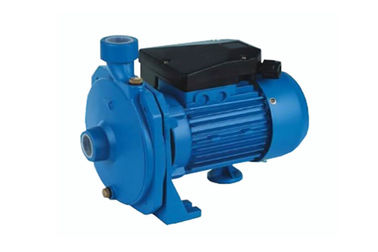

Cast Iron Electric Motor Water Pump, Horizontal Multistage Centrifugal Pump For Domestic
Electric Motor Water Pump Application:
The SCM2-52 electric motor water pump is with a cast iron body. The motor housing is aluminum. The impeller can be made of Brass, Stainless Steel, and PPO. Fo the insulation, It is class B and F. The protection class is IP44 and IP 54. It is continuously duty rated. The max ambient temperature is up to 40℃.the max fluid temperature up to 80℃
Electric Motor Water Pump Technical Data:
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. | |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | ||||
| SCM2-52 | 1.5 / 1.1 | 7 | 2850 | 105 | 50 | 9 | 1.25"x1" | 415x255x320 | 23.5 | |
Other voltages and frequencies available on request
Electric Motor Water Pump Application:
SCM2 series dual-stage centrifugal pump is twin impellers centrifugal pump designed for use in pressurization units for domestic, civil, and industrial use. Suitable for sprinkling irrigation and other water supply applications, such as well-pumping, water supplying, decanting, etc.
structural Characteristics:
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | Noryl PPO |
| Motor housing | Aluminum | |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction Lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our Service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
